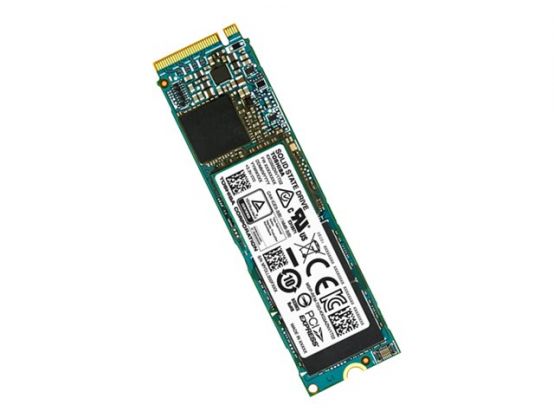

Toshiba XG5 Series KXG50ZNV512G - SSD - 512 GB - M.2 Card
Manufacture#: KXG50ZNV512G
Checking delivery…
Product details
SSD
encrypted
512 GB
internal
Payment options available at checkout
Main features
Toshiba XG5 Series KXG50ZNV512G
SSD
encrypted
512 GB
internal
M.2 2280
M.2 Card
TCG Encryption
Overview
XG5 series SSDs feature Toshiba's 64-layer, 3D TLC (3-bit-per-cell) flash memory BiCS FLASH. XG5 series SSDs also feature an SLC cache to accelerate burst type workloads, as well as improved power consumption comparing to prior generation XG3, making these SSDs an efficient option for high-performance mobile computing.
Toshiba 64-layer BiCS FLASH
PCIe Gen3 x4L NVMe
M.2 2280 single-sided
Product Description
Toshiba XG5 Series KXG50ZNV512G - SSD - 512 GB - M.2 Card
Type
Solid state drive - internal
Capacity
512 GB
Hardware Encryption
Yes
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280
Interface
M.2 Card
Features
64-layer 3D BiCS FLASH, Host Controlled Thermal Management (HCTM), Strong and highly-efficient ECC (QSBC), Storage Interface Interactions Specification(SIIS), Device Self-test
Dimensions (WxDxH)
22 mm x 80 mm x 2.23 mm
Weight
7.3 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
512 GB
Hardware Encryption
Yes
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280
Interface
M.2 Card
Features
64-layer 3D BiCS FLASH, Host Controlled Thermal Management (HCTM), Strong and highly-efficient ECC (QSBC), Storage Interface Interactions Specification(SIIS), Device Self-test
Width
22 mm
Depth
80 mm
Height
2.23 mm
Weight
7.3 g
Performance
Internal Data Rate
3000 MBps (read) / 1050 MBps (write)
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Interfaces
1 x M.2 Card - M.2 Card
Compatible Bay
M.2 2280
Power
Power Consumption
4.3 Watt (read) ¦ 2.6 Watt (write) ¦ 4.3 Watt (active)
Miscellaneous
Compliant Standards
ICES-003, EN55024, FCC Part 15 B, UL 60950-1, EN 60950-1, BSMI CNS 13438, CAN/CSA C22.2 No. 60950-1-07, KN32, KN35, EN 55032, AS/NZS CISPR 32
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
80 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
8 - 90% (non-condensing)
Shock Tolerance (operating)
1500 g @ 0.5 ms half-sine wave
Shock Tolerance (non-operating)
1500 g @ 0.5 ms half-sine wave
Vibration Tolerance (operating)
20 g @ 10-2000 Hz
