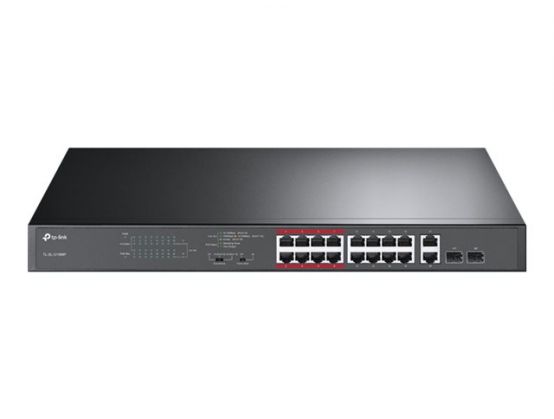

TP-Link TL-SL1218MP - switch - 16 ports - unmanaged - rack-mountable
Manufacture#: TL-SL1218MP
Checking delivery…
Product details
Switch
unmanaged
16 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
rack-mountable (192 W)
Payment options available at checkout
Main features
TP-Link TL-SL1218MP
Switch
unmanaged
16 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
rack-mountable (192 W)
Overview
TP-Link's new TL-SL1218MP PoE switch with all 16 ports supporting the PoE+ standard provides a simple way to expand the wired network while transferring power over the same Ethernet cable at the same time. With a total power budget of 192W, up to 30W per port, TL-SL1218MP can power more high-powered devices such as Access Points, IP Cameras, IP Phones and so on. Moreover, with innovative Extend Mode, devices can get PoE power supply and data transmission from 250m's distance. Priority mode ensures high priority for Port 1-8, which guarantees the quality of sensitive applications.
16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
Up to 250m data and power transmission under extend mode specially designed for surveillance system
Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
Easy to use, with no configuration and installation needed
Product Description
TP-Link TL-SL1218MP - switch - 16 ports - unmanaged - rack-mountable
Device Type
Switch - 16 ports - unmanaged
Enclosure Type
Rack-mountable
Subtype
Fast Ethernet
Ports
16 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
PoE Budget
192 W
Performance
Switching capacity: 7.2 Gbps ¦ Packet forwarding rate: 5.36 Mpps
MAC Address Table Size
8K entries
Jumbo Frame Support
10KB
Features
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 18 cm x 4.4 cm
Manufacturer Warranty
Limited lifetime warranty
General
Device Type
Switch - 16 ports - unmanaged
Enclosure Type
Rack-mountable
Subtype
Fast Ethernet
Ports
16 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
PoE Budget
192 W
Performance
Switching capacity: 7.2 Gbps ¦ Packet forwarding rate: 5.36 Mpps
MAC Address Table Size
8K entries
Jumbo Frame Support
10KB
Features
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Status Indicators
Power, 100M device connected, link/activity
Expansion / Connectivity
Interfaces
16 x 100Base-TX RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
217.22 Watt
Miscellaneous

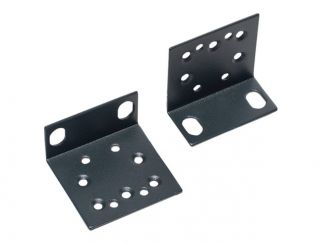

Rack Mounting Kit
Included
Compliant Standards
Plug and Play, FCC Class A certified, EN 60950, EN55022, EN55024, FCC Part 15
Dimensions & Weight
Width
44 cm
Depth
18 cm
Height
4.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
