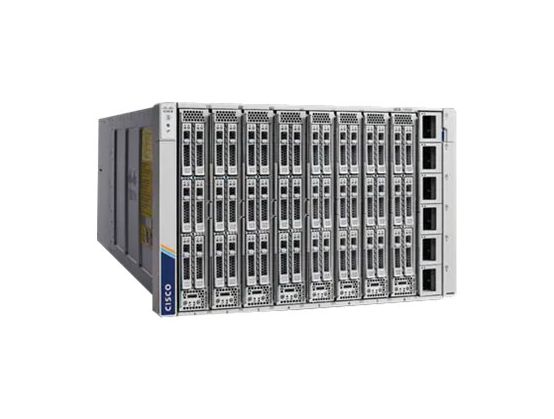

The Cisco UCS X-Series modular system begins with the Cisco UCS X9508 chassis engineered to be adaptable and future ready. It is a standard, open system designed to deploy and automate faster in concert with a hybrid cloud environment.¦With a midplane-free design, I/O connectivity for the X9508 chassis is accomplished with frontloading, vertically oriented compute nodes intersecting with horizontally oriented I/O connectivity modules in the rear of the chassis.
Product DescriptionCisco UCS 9508 Chassis - modular expansion base
Device TypeModular expansion base
Form FactorExternal - 7U
Included Accessories8 blank panels, accessory kit, 6 power supply slot covers, power supply keying bracket
Power RedundancyOptional
Dimensions (WxDxH)44.6 cm x 88.4 cm x 30.6 cm
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypeModular expansion base
Height (Rack Units)7U
Width44.6 cm
Depth88.4 cm
Height30.6 cm
Networking
Form FactorExternal
Connectivity TechnologyWired
Expansion / Connectivity
Expansion Slots8 (total) / 8 (free) x expansion slot ¦ 2 (total) / 2 (free) x Intelligent Fabric Module (IFM) ¦ 2 (total) / 2 (free) x expansion slot
Miscellaneous
Included Accessories8 blank panels, accessory kit, 6 power supply slot covers, power supply keying bracket
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, Directive 2006/108/EC, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Power
Power DeviceInternal power supply (not installed)
Max Supported Qty6
Power RedundancyOptional
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 3 years - response time: next business day
