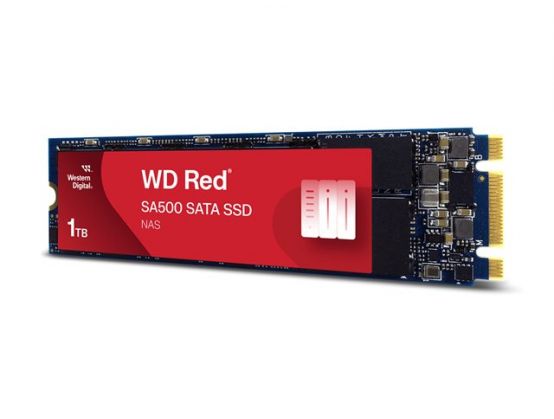

WD Red SA500 WDS100T1R0B-68A4Z0 - SSD - 1 TB - internal - M.2 2280 - SATA 6Gb/s
Manufacture#: WDS100T1R0B-68A4Z0
Checking delivery…
Product details
SSD
1 TB
internal
M.2 2280
Payment options available at checkout
Main features
WD Red SA500 WDS100T1R0B
SSD
1 TB
internal
M.2 2280
SATA 6Gb/s
Overview
Boost your NAS system's performance and responsiveness with the WD Red SA500 NAS SATA SSD. Your NAS system is always on, making a reliable drive essential. WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. Their endurance and efficient caching makes them ideal for demanding applications.
Product Description
WD Red SA500 WDS100T1R0B - SSD - 1 TB - SATA 6Gb/s
Type
Solid state drive - internal
Capacity
1 TB
Form Factor
M.2 2280
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Features
24x7 continuous operation, 3D NAND Technology
Dimensions (WxDxH)
22 mm x 80 mm x 2.38 mm
Weight
7 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
1 TB
Form Factor
M.2 2280
Interface
SATA 6Gb/s
Features
24x7 continuous operation, 3D NAND Technology
Width
22 mm
Depth
80 mm
Height
2.38 mm
Weight
7 g
Performance
SSD Endurance
600 TB
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
560 MBps (read) / 530 MBps (write)
4KB Random Read
95000 IOPS
4KB Random Write
85000 IOPS
Reliability
MTBF
2,000,000 hours
24x7 Operation
Yes
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s - M.2 Card
Compatible Bay
M.2 2280
Power
Power Consumption
60 mW (active) ¦ 2550 mW (read) ¦ 3750 Watt (write) ¦ 56 mW (sleep) ¦ 12 mW (DevSleep)
Miscellaneous
Compliant Standards
FCC, UL, TUV, BSMI, KC, VCCI, Morocco
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Min Storage Temperature
-55 °C
Max Storage Temperature
85 °C
Shock Tolerance (non-operating)
1500 g @ 0.5 ms half-sine
Vibration Tolerance (operating)
5 g @ 10-2000 Hz
Vibration Tolerance (non-operating)
4.9 g @ 7-800 Hz
