The practically indestructible DS3678-ER cordless scanners are ready for one of the world's toughest environments - the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./21.4 m away, these scanners provide the ultimate in versatility - workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a great level.
TypeBarcode scanner - portable - Bluetooth 4.0 - decoded
ColourIndustrial green
Minimum Bar Width3 mil
Scan Element Type2D imager
Connectivity TechnologyWireless
Wireless ConnectivityBluetooth 4.0 LE

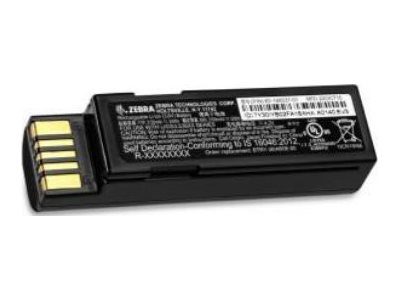

Battery1 x Lithium Ion
Dimensions (WxDxH)7.7 cm x 14.3 cm x 18.5 cm
Weight436 g
Manufacturer Warranty3-year warranty
Extended Specification
General
TypeBarcode scanner - portable
ColourIndustrial green
Barcode
Interface TypeBluetooth 4.0
Minimum Bar Width3 mil
Scan Element Type2D imager
Scan ModeSingle-pass
Skew (Degrees)60
Pitch (Degrees)60
Decode CapabilityAztec code, China Han Xin Code, Data Matrix, GS1 DataBar, MaxiCode, Micro QR code, MicroPDF417, PDF417, QR code, TLC39
TTL DecodingDecoded
Connectivity TechnologyWireless
OK NotificationBeeper, LED indicator, vibration
FeaturesRugged
Networking
Wireless ConnectivityBluetooth 4.0 LE
Miscellaneous
Compliant StandardsIP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007
