HC25 WAN 5G WIFI 6 SE4720 6IN 6GB/64GB 16MP HC25 W/ SCANNER
Manufacture#: WCMTB-H25B6BCJ1-A6
Checking delivery…
Product details
Data collection terminal
rugged
Android
64 GB
Payment options available at checkout
Main features
Zebra HC25
Data collection terminal
rugged
Android
64 GB
6" colour (1080 x 2160)
rear camera
barcode reader
(2D imager)
USB host
microSD slot
Bluetooth, NFC, Wi-Fi 6
4G, 5G
Overview

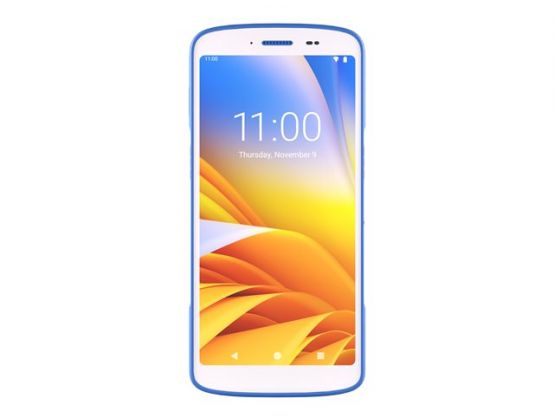

The Zebra HC25 is a robust data collection terminal designed to withstand harsh environments while providing powerful performance and versatility. Equipped with a 6-inch capacitive touch screen featuring a native resolution of 1080 x 2160, it ensures clear visibility and responsive interaction even in challenging conditions. With a battery capacity of 3800 mAh, the HC25 supports long-lasting operation, making it an ideal choice for fieldwork and other demanding settings. Integrated with connectivity options including 4G LTE and 5G mobile broadband, as well as dual-band Wi-Fi and Bluetooth 5.2, the HC25 facilitates seamless communication and data transfer. It includes a 16-megapixel rear camera, enabling effective image capture for documentation or inspections, and features such as a hot-swappable battery and ESD protection enhance usability and reliability in various industrial applications.
Product Description
Zebra HC25 - data collection terminal - Android - 64 GB - 6" - 4G, 5G
Product Type
Data collection terminal - rugged
Operating System
Android
Display
6" colour LED backlight - 1080 x 2160 - Multi-Touch
Processor
Qualcomm Snapdragon 5430 (6-core)
Processor Clock Speed
2.1 GHz
Storage
64 GB
RAM
6 GB
Supported Flash Memory Cards
microSD
Cellular Technology
4G, 5G
Cellular Protocols
4G LTE, 5G
Wireless Connectivity
Bluetooth 5.2, NFC, 802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Rear Camera
16 Megapixel
Barcode Reader
Yes (2D imager)
RFID Specification
ISO 14443A, ISO 14443B, Felica, ISO 15693
Features
USB host
Dimensions (WxDxH)
7.63 cm x 1.25 cm x 16.5 cm
Weight
239 g
Manufacturer Warranty
1-year warranty
General
Product Type
Data collection terminal - rugged
Operating System
Android
Display
Type
6" colour - LED backlight
Resolution
1080 x 2160
Touchscreen
Multi-Touch
Image Brightness
450 cd/m²
Features
Corning Gorilla glass, capacitive touch screen, glove touch mode
Processor
Processor
Qualcomm Snapdragon 5430
Processor Clock Speed
2.1 GHz
Number of Cores
6-core
Memory
Storage
64 GB
RAM
6 GB
Supported Flash Memory Cards
microSD
Max Supported Capacity
2 TB
Communications
Cellular Technology
4G, 5G
Cellular Protocols
4G LTE, 5G
Wireless Connectivity
Bluetooth 5.2, NFC, 802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Security Protocols & Features
WEP, WPA3-Enterprise, GCMP, EAP-TLS, AES-CCMP, AES-128, EAP-TTLS, PAP, MS-CHAP, MS-CHAPv2, PEAPv0, PEAPv1, EAP-GTC, LEAP, EAP-PWD, WPA3-Personal, WPA2-Enterprise, WPA, TKIP, WPA3-OWE, AES, WPA2-Personal, IPv4 support, IPv6 support
Rear Camera
Sensor Resolution
16 Megapixel
Multimedia
Audio
Two microphones, two speakers
Input Device
Type
Touch-screen
Barcodes
Barcode Reader
Yes
Scan Element Type
2D imager
RFID
RFID Specification
ISO 14443A, ISO 14443B, Felica, ISO 15693
Expansion and Connectivity
Expansion Slots
1 x microSD
Interfaces
1 x USB-C 3.1
USB Host
Yes
Battery
Technology
Lithium Ion
Capacity
3800 mAh
Miscellaneous
Sensors
3-axis accelerometer with MEMS gyro, light sensor, eCompass, proximity sensor
Features
SE4720 imager, hot-swappable battery, 2x2 MU-MIMO technology, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), Interactive Sensor Technology (IST), push-to-talk speaker, ESD protection up to 8 kV (indirect)
Vibrating Alert
Yes
Compliant Standards
IP65, IP68, Bluetooth Class 2, MIL-STD-810H, ISO/IEC 18092, RoHS, ROHS Directive 2011/65/EU, REACH SVHC 1097/2006
Dimensions & Weight
Width
7.63 cm
Depth
1.25 cm
Height
16.5 cm
Weight
239 g
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
