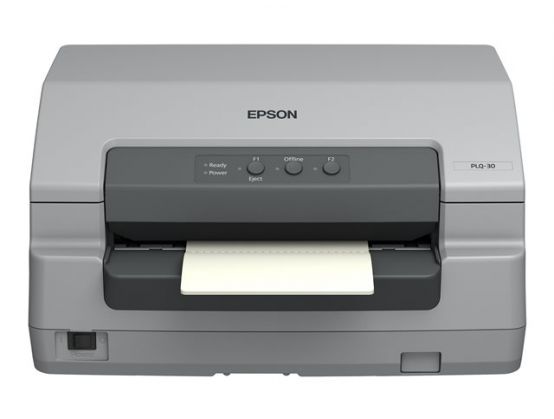

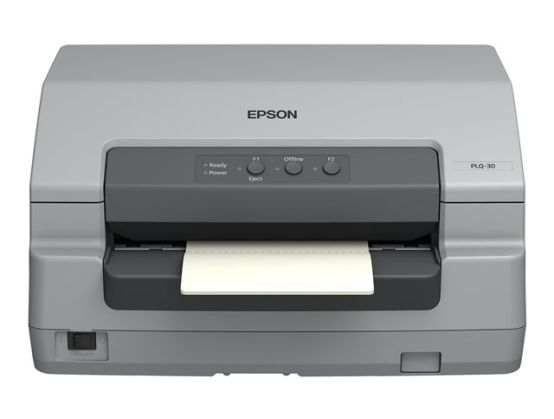

The 'M' version of the PLQ-30 has a MSRW head. Customers and staff alike will appreciate the PLQ-30M's unobtrusive noise levels, which are as low as 55dBA. It's efficient, too – the print speed enhancer enables fast printing of bit image data under Windows environments to help cut queues.
Print SpeedUp to 585 char/sec - ultra high speed draft ¦ Up to 520 char/sec - high speed draft ¦ Up to 390 char/sec - draft ¦ Up to 195 char/sec ¦ Up to 130 char/sec - laser quality ¦ Up to 624 char/sec - high speed draft ¦ Up to 468 char/sec - draft ¦ Up to 195 char/sec ¦ Up to 156 char/sec - laser quality
Max Resolution (B&W)12 cpi
InterfaceParallel, USB 2.0, serial
RAM Installed (Max)128 KB
Language SimulationEPSON ESC/P, IBM PPDS, Olivetti PR2
BarcodesIndustrial 2 of 5, Code 39, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, EAN-8, EAN-13
Media TypePlain paper, passbook
PowerAC 230V
System RequirementsMicrosoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Print SpeedUp to 585 char/sec - ultra high speed draft - 10 cpi ¦ Up to 520 char/sec - high speed draft - 10 cpi ¦ Up to 390 char/sec - draft - 10 cpi ¦ Up to 195 char/sec - 10 cpi ¦ Up to 130 char/sec - laser quality - 10 cpi ¦ Up to 624 char/sec - high speed draft - 12 cpi ¦ Up to 468 char/sec - draft - 12 cpi ¦ Up to 195 char/sec - 12 cpi ¦ Up to 156 char/sec - laser quality - 12 cpi
Built-in DevicesMagnetic stripe reader/writer
Connectivity TechnologyWired
InterfaceParallel, USB 2.0, serial
Max Resolution (B&W)12 cpi
Language SimulationEPSON ESC/P, IBM PPDS, Olivetti PR2
BarcodesIndustrial 2 of 5, Code 39, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, EAN-8, EAN-13
RAM
RAM Installed (Max)128 KB
Media Handling
Media TypePlain paper, passbook
Max Media Size245 x 297 mm
Min Media Size (Custom)65 mm x 67 mm
Max Media Size (Custom)245 mm x 297 mm
Media Sizes216 mm width, 241.3 mm width, 110 mm width, 120 mm width
Media Thickness Range0.075 mm - 2.6 mm
Media Feeders1 x manual - 1 sheet - 245 x 297 mm
Max Sheets in Multi-Part Form7
Expansion / Connectivity
Connections1 x parallel ¦ 1 x RS-232 ¦ 1 x USB 2.0 - 4 pin USB Type B
Miscellaneous
Consumables Included1 x ribbon (black)
MTBF12,000 hour(s)
Power
Power DevicePower supply - internal
Voltage RequiredAC 230V
Frequency Required50/60 Hz
Power Consumption Operational64 Watt
Power Consumption Stand by4.5 Watt
Software / System Requirements
OS RequiredMicrosoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Manufacturer Warranty
Service & SupportLimited warranty - 1 year - carry-in
