EPSON

PLQ-30M IN

Name: PLQ-30M IN
Brand: EPSON
SKU: 1TPRNMXP-000403
Price: 705.49 GBP
Availability: OutOfStock

SKU

1TPRNMXP-000403

Manufacture#: C11CB64501

£587.91

£705.49 inc VAT

Checking delivery…

Product details

Passbook printer
B/W
dot-matrix
245 x 297 mm

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

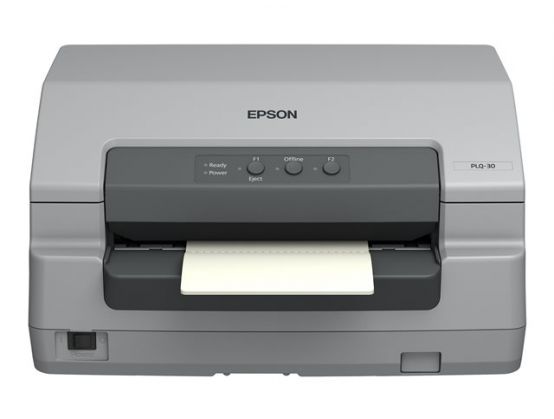

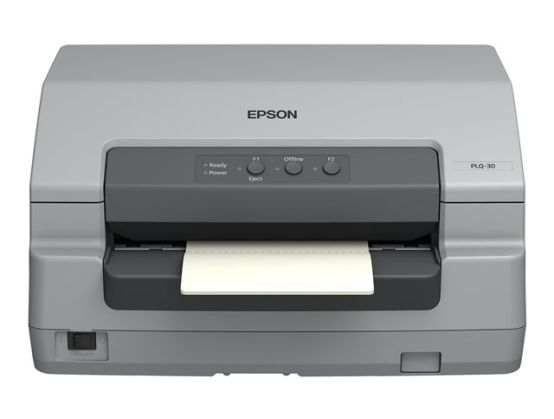

Epson PLQ 30M
Passbook printer
B/W
dot-matrix
245 x 297 mm
12 cpi
24 pin
up to 624 char/sec
parallel, USB 2.0, serial

Overview

The 'M' version of the PLQ-30 has a MSRW head. Customers and staff alike will appreciate the PLQ-30M's unobtrusive noise levels, which are as low as 55dBA. It's efficient, too – the print speed enhancer enables fast printing of bit image data under Windows environments to help cut queues.

Specification

Product Description Epson PLQ 30M - passbook printer - B/W - dot-matrix

Printer Type Passbook printer - dot-matrix - 24 pin - B/W

Weight 8.9 kg

Max Media Size 245 x 297 mm

Min Media Size (Custom) 65 mm x 67 mm

Max Media Size (Custom) 245 mm x 297 mm

Print Speed Up to 585 char/sec - ultra high speed draft ¦ Up to 520 char/sec - high speed draft ¦ Up to 390 char/sec - draft ¦ Up to 195 char/sec ¦ Up to 130 char/sec - laser quality ¦ Up to 624 char/sec - high speed draft ¦ Up to 468 char/sec - draft ¦ Up to 195 char/sec ¦ Up to 156 char/sec - laser quality

Max Resolution (B&W) 12 cpi

Interface Parallel, USB 2.0, serial

RAM Installed (Max) 128 KB

Language Simulation EPSON ESC/P, IBM PPDS, Olivetti PR2

Barcodes Industrial 2 of 5, Code 39, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, EAN-8, EAN-13

Media Type Plain paper, passbook

Power AC 230V

System Requirements Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10

Manufacturer Warranty 1-year warranty

Dimensions (WxDxH) 38.4 cm x 28 cm x 20.3 cm

General

Printer Type Passbook printer - dot-matrix - 24 pin - monochrome

Printer

Print Speed Up to 585 char/sec - ultra high speed draft - 10 cpi ¦ Up to 520 char/sec - high speed draft - 10 cpi ¦ Up to 390 char/sec - draft - 10 cpi ¦ Up to 195 char/sec - 10 cpi ¦ Up to 130 char/sec - laser quality - 10 cpi ¦ Up to 624 char/sec - high speed draft - 12 cpi ¦ Up to 468 char/sec - draft - 12 cpi ¦ Up to 195 char/sec - 12 cpi ¦ Up to 156 char/sec - laser quality - 12 cpi

Built-in Devices Magnetic stripe reader/writer

Connectivity Technology Wired

Interface Parallel, USB 2.0, serial

Max Resolution (B&W) 12 cpi

Language Simulation EPSON ESC/P, IBM PPDS, Olivetti PR2

Barcodes Industrial 2 of 5, Code 39, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, EAN-8, EAN-13

RAM

RAM Installed (Max) 128 KB

Media Handling

Media Type Plain paper, passbook

Max Media Size 245 x 297 mm

Min Media Size (Custom) 65 mm x 67 mm

Max Media Size (Custom) 245 mm x 297 mm

Media Sizes 216 mm width, 241.3 mm width, 110 mm width, 120 mm width

Media Thickness Range 0.075 mm - 2.6 mm

Media Feeders 1 x manual - 1 sheet - 245 x 297 mm

Max Sheets in Multi-Part Form 7

Expansion / Connectivity

Connections 1 x parallel ¦ 1 x RS-232 ¦ 1 x USB 2.0 - 4 pin USB Type B

Miscellaneous

Consumables Included 1 x ribbon (black)

MTBF 12,000 hour(s)

Power

Power Device Power supply - internal

Voltage Required AC 230V

Frequency Required 50/60 Hz

Power Consumption Operational 64 Watt

Power Consumption Stand by 4.5 Watt

Software / System Requirements

OS Required Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10

Manufacturer Warranty

Service & Support Limited warranty - 1 year - carry-in

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 10 - 80%

Sound Emission (Operating) 55 dBA

Dimensions & Weight

Width 38.4 cm

Depth 28 cm

Height 20.3 cm

Weight 8.9 kg
