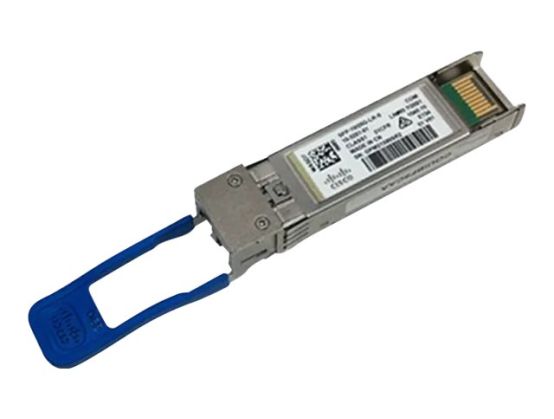

10/25GBASE-LR-I SFP28 ITEMP MODULE
Manufacture#: SFP-10/25G-LR-I=
£1605 .23
£1926.28 inc VAT
Checking delivery…
Product details
SFP28 transceiver module
10 GigE, 25 Gigabit LAN
10GBase-LR, 25GBase-LR
up to 10 km
Payment options available at checkout
Main features
Cisco
SFP28 transceiver module
10 GigE, 25 Gigabit LAN
10GBase-LR, 25GBase-LR
up to 10 km
1260-1295 (TX) / 1325-1355 (RX) nm
for P/N: N540-12Z20G-SYS-D=, N540-FH-CSR-SYS=, N540X-16Z4G8Q2C-A=, N540X-4Z14G2Q-D
Overview
The Cisco 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.
Product Description
Cisco - SFP28 transceiver module - 10 GigE, 25 Gigabit LAN
Device Type
SFP28 transceiver module
Form Factor
Plug-in module
Cabling Type
10GBase-LR, 25GBase-LR
Data Transfer Rate
25 Gbps
Optical Wave Length
1260-1295 (TX) / 1325-1355 (RX) nm
Data Link Protocol
10 GigE, 25 Gigabit LAN
Max Transfer Distance
10 km
Manufacturer Warranty
90 days warranty
Designed For
P/N: N540-12Z20G-SYS-D, N540-12Z20G-SYS-D=, N540-24Z8Q2C-M=, N540-FH-CSR-SYS=, N540X-12Z16G-SYS-A, N540X-12Z16G-SYS-D, N540X-16Z4G8Q2C-A, N540X-16Z4G8Q2C-A=, N540X-16Z4G8Q2C-D, N540X-4Z14G2Q-A, N540X-4Z14G2Q-D
General
Device Type
SFP28 transceiver module
Form Factor
Plug-in module
Colour
Blue
Networking
Connectivity Technology
Wired
Cabling Type
10GBase-LR, 25GBase-LR
Data Link Protocol
10 GigE, 25 Gigabit LAN
Data Transfer Rate
25 Gbps
Optical Wave Length
1260-1295 (TX) / 1325-1355 (RX) nm
Max Transfer Distance
10 km
Features
Peach pull tab
Expansion / Connectivity
Interfaces
1 x Ethernet 25GBase-LR
Miscellaneous
Compliant Standards
ITU-T G.652
Manufacturer Warranty
Service & Support
Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
85 °C
Compatibility Information
Designed For
P/N: N540-12Z20G-SYS-D, N540-12Z20G-SYS-D=, N540-24Z8Q2C-M=, N540-FH-CSR-SYS=, N540X-12Z16G-SYS-A, N540X-12Z16G-SYS-D, N540X-16Z4G8Q2C-A, N540X-16Z4G8Q2C-A=, N540X-16Z4G8Q2C-D, N540X-4Z14G2Q-A, N540X-4Z14G2Q-D
