1715L 43 2CM 17IN LCD VGA USB/RS232 ACCUTOUCH IN
Checking delivery…
Product details
LED monitor
17"
1280 x 1024 @ 75 Hz
200 cd/m²
Payment options available at checkout
Main features
Elo 1715L AccuTouch
LED monitor
17"
1280 x 1024 @ 75 Hz
200 cd/m²
1000:1
5 ms
VGA
dark grey
Overview
The Elo 1715L 17-inch standard format touchscreen monitor is designed, developed and built to provide a space-saving and cost-effective touch solution. The 17-inch touchscreen monitor can function as a desktop or wall-mounted unit and includes a VESA mounting option. The touchscreen is factory-sealed against dirt, dust, and liquids and with controls on the side rather than the front, the touchscreen can be locked-out for public use.
Product Description

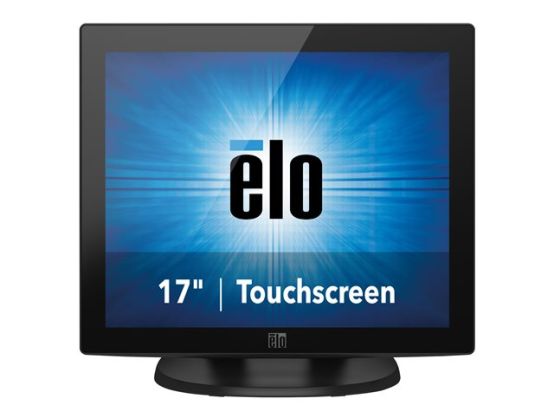

Elo 1715L AccuTouch - LED monitor - 17"
Device Type
LED-backlit LCD monitor - 17"
Features
Touch-screen
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 75 Hz
Brightness
200 cd/m²
Contrast Ratio
1000:1
Response Time
5 ms
Colour Support
16.7 million colours
Input Connectors
VGA
Voltage
AC 120/230 V (50/60 Hz)
Colour
Dark grey
Dimensions (WxDxH) - with stand
39.1 cm x 20.3 cm x 36.6 cm
Weight
6.9 kg
Localisation
EMEA, Americas
Compliant Standards
MPR II, UL, VCCI, C-Tick, cUL, IC, FCC, S Mark, RCM
Manufacturer Warranty
3-year warranty
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
17"
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 75 Hz
Brightness
200 cd/m²
Contrast Ratio
1000:1
Colour Support
16.7 million colours
Response Time
5 ms
Vertical Refresh Rate
56.3 - 75 Hz
Horizontal Refresh Rate
31.5 - 80 kHz
Horizontal Viewing Angle
+85 / -85
Vertical Viewing Angle
+80 / -80
Backlight Technology
LED backlight
Controls & Adjustments
Brightness, contrast, H/V position, colour temperature, phase, clock
OSD Languages
English, German, French, Spanish, Japanese
Features
AccuTouch Five-Wire Resistive, anti-glare, OSD lock, HID Compliant
Colour
Dark grey
Dimensions (WxDxH)
39.1 cm x 20.3 cm x 36.6 cm - with stand
Weight
6.9 kg
Input
Type
Touch-screen
Movement Detection Technology
Resistive
Connectivity
Interfaces
VGA ¦ Serial ¦ USB
Mechanical
VESA Mounting Interface
100 x 100 mm
Miscellaneous
Features
Water-resistant, wall mountable, dust-resistant, dirt resistant, Flexible Mounting Profile, mounting holes, security lock, magnetic stripe
Cables Included
1 x VGA cable ¦ 1 x serial cable ¦ 1 x USB cable
MTBF
50,000 hour(s)
Compliant Standards
MPR II, UL, VCCI, C-Tick, cUL, IC, FCC, S Mark, RCM
Localisation
EMEA, Americas
Power
Power Supply
Internal
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (Typical)
21 Watt
Dimensions & Weight (Shipping)
Shipping Width
45.7 cm
Shipping Depth
29 cm
Shipping Height
44 cm
Shipping Weight
9.6 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80%
