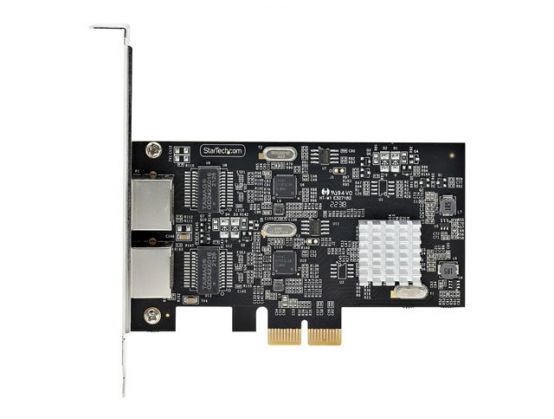

Name: StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface - Network adapter - PCIe 2.0 x2 low profile - 10M/100M/1G/2.5 Gigabit Ethernet
Brand: StarTech.com
SKU: 1TNETNIC-005807
Price: 134.7 GBP
Availability: InStock

Overview

Main features

StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface
Network adapter
PCIe 2.0 x2 low profile
10M/100M/1G/2.5 Gigabit Ethernet x 2
black

Overview

This dual-port 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity across two 2.5G Ethernet connections. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Specification

Product Description StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface - network adapter - PCIe 2.0 x2 - 10M/100M/1G/2.5 Gigabit Ethernet x 2

Device Type Network adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 2.0 x2

PCI Specification Revision PCIe 2.0

Ports 10M/100M/1G/2.5 Gigabit Ethernet x 2

Dimensions (WxDxH) 11 cm x 12 cm x 1.8 cm

Weight 60 g

Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T

Data Link Protocol 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE

Data Transfer Rate 2.5 Gbps

Capacity Jumbo frame size: 9000

Processor Intel I225-V

Compliant Standards IEEE 802.3bz, IEEE 1588v1, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az

Colour Black

System Requirements Microsoft Windows 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux 5.8.x or later (LTS versions only)

Manufacturer Warranty 2-year warranty

General

Device Type Network adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 2.0 x2

PCI Specification Revision PCIe 2.0

Networking

Ports 10M/100M/1G/2.5 Gigabit Ethernet x 2

Connectivity Technology Wired

Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Data Transfer Rate 2.5 Gbps

Capacity Jumbo frame size: 9000

Status Indicators Link/activity/speed

Features PXE boot, Intel vPro Technology support, full duplex capability, Auto MDIX, auto-negotiation, VLAN support, WOL, bus powered

Compliant Standards IEEE 802.3bz, IEEE 1588v1, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az

Processor / Memory

Processor Intel I225-V

Expansion / Connectivity

Interfaces 2 x 2.5 GBase-T - RJ-45

Miscellaneous

Included Accessories Low-profile bracket

Compliant Standards RCM, WEEE, IEEE 1588

Colour Black

Software / System Requirements

OS Required Microsoft Windows 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux 5.8.x or later (LTS versions only)

Dimensions & Weight

Width 11 cm
