INTEL CORE I7-8665UE 16/128GB FANLESS 60W PALM-SIZED
Manufacture#: EPC-U3233-WR074S0
£1280 .52
£1536.62 inc VAT
Checking delivery…
Product details
Palm size Core i7 8665UE / up to 4.4 GHz
vPro
RAM 16 GB
SSD 128 GB
Payment options available at checkout
Main features

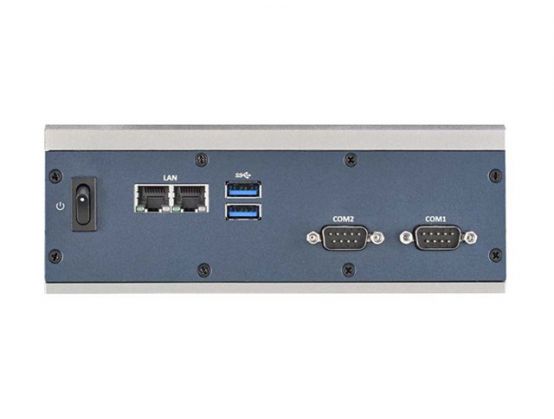

Advantech EPC-U3233
Palm size Core i7 8665UE / up to 4.4 GHz
vPro
RAM 16 GB
SSD 128 GB
NVMe
UHD Graphics 620
Gigabit Ethernet
no OS
monitor: none
Overview
The Advantech EPC-U3233 is an small form factor personal computer designed for versatility and performance. Equipped with an Intel Core i7 processor and a quad-core architecture, this device operates at a clock speed of 1.7 GHz, with a maximum turbo speed reaching 4.4 GHz. The built-in 16 GB DDR4 RAM ensures smooth multitasking and efficient handling of demanding applications. Complemented by a 128 GB M.2 2280 NVMe SSD, this compact PC provides ample storage and quick data access, suitable for various applications in a small footprint.
Product Description
Advantech EPC-U3233 - palm size Core i7 8665UE 1.7 GHz - vPro - 16 GB - SSD 128 GB
Type
Personal computer - palm size
Platform Technology
Intel vPro Platform
Processor
Intel Core i7 (8th Gen) 8665UE / 1.7 GHz (up to 4.4 GHz, (Quad-Core)
Cache Memory
8 MB
Cache Per Processor
8 MB
RAM
16 GB (installed) / 16 GB (max) - DDR4 SDRAM
Hard Drive
SSD 128 GB - PCI Express 3.0 x4 (NVMe) - M.2 2280 - NVM Express (NVMe)
Optical Storage
No optical drive
Graphics Controller
Intel UHD Graphics 620
Networking
1GbE, 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.0
OS Provided
No operating system
Dimensions (WxDxH)
17 cm x 11.67 cm x 6.6 cm
Weight
1.9 kg
General
Platform Technology
Intel vPro Platform
Type
Personal computer
Product Form Factor
Palm size
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Processor / Chipset
CPU
Intel Core i7 (8th Gen) 8665UE
Clock Speed
1.7 GHz
Max Turbo Speed
4.4 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Cache Memory
Installed Size
8 MB
Cache Per Processor
8 MB
RAM
Installed Size
16 GB (installed) / 16 GB (max)
Technology
DDR4 SDRAM
Rated Memory Speed
2400 MHz
Form Factor
SO-DIMM 260-pin
Slots
1 (Total) / 0 (empty)
Configuration Features
1 x 16 GB
Hard Drive
Type
SSD - M.2 2280
Capacity
1 x 128 GB
Interface Type
PCI Express 3.0 x4 (NVMe)
Features
NVM Express (NVMe)
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Intel UHD Graphics 620
Video Interfaces
HDMI
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I219, I211
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.0
Expansion / Connectivity
Slots
1 (total) / 0 (free) x M.2 Card - 2280 (Key M) ¦ 1 M.2 Card - 2230 (Key E) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/3042 (Key B) ¦ 1 (total) / 1 (free) x Nano-SIM card
Interfaces
1 x audio line-out ¦ 2 x HDMI ¦ 2 x USB 3.0 - Type A ¦ 4 x serial ¦ 2 x USB 2.0 - Type A ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x GPIO
Miscellaneous
Included Accessories
Wall mounting kit
Compliant Standards
CCC, BSMI, UL, CB, FCC
Power
Device Type
Power adapter
Power Provided
60 Watt
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17 cm
Depth
11.67 cm
Height
6.6 cm
Weight
1.9 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
