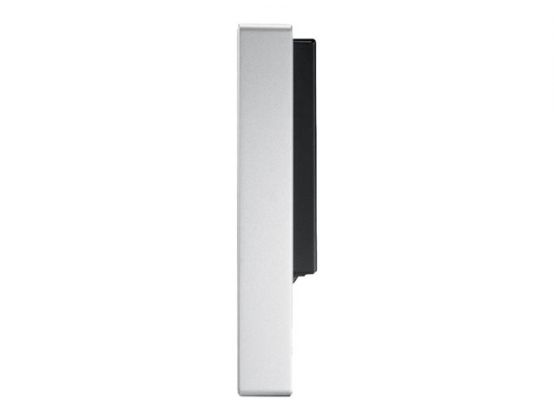

UTC-500 PLASTIC 10.1IN PCAP G N4200 4GB 128GB MLC SSD EU WIFI
Manufacture#: UTC-510GP-X428W
Checking delivery…
Product details
All-in-one
Pentium N4200 up to
RAM 4 GB
SSD 128 GB
Payment options available at checkout
Main features
Advantech Ubiquitous Touch Computer UTC-510G
All-in-one
Pentium N4200 up to
RAM 4 GB
SSD 128 GB
MLC
HD Graphics 505
Gigabit Ethernet
Wi-Fi
monitor: LED 10.1" 1280 x 800 (WXGA) touchscreen
Overview
UTC-510D is a multipurpose all-in-one touch computer that features a fanless design and an efficient processor for delivering high-performance computing in a compact platform.
Product Description
Advantech Ubiquitous Touch Computer UTC-510G - all-in-one Pentium N4200 1.1 GHz - 4 GB - SSD 128 GB - LED 10.1"
Type
Personal computer - all-in-one
Localisation
Region: Europe
Processor
Intel Pentium N4200 / 1.1 GHz (Quad-Core)
Cache Memory
2 MB L2 Cache
Cache Per Processor
2 MB
RAM
4 GB (installed) / 8 GB (max) - DDR3L SDRAM
Storage Controller
SATA
Hard Drive
SSD 128 GB - multi-level cell (MLC)
Optical Storage
No optical drive
Monitor
10.1" - LED - 1280 x 800 (WXGA) - 16:10 - touchscreen
Graphics Controller
Intel HD Graphics 505
Networking
1GbE, Wi-Fi
Dimensions (WxDxH)
26.54 cm x 3.955 cm x 18.24 cm
Weight
1.8 kg
General
Type
Personal computer
Product Form Factor
All-in-one
Built-in Devices
Stereo speakers, capacitive touch screen
Localisation
Region: Europe
Processor / Chipset
CPU
Intel Pentium N4200
Clock Speed
1.1 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Cache Memory
Installed Size
L2 Cache - 2 MB
Cache Per Processor
2 MB
RAM
Installed Size
4 GB (installed) / 8 GB (max)
Technology
DDR3L SDRAM
Effective Memory Speed
1866 MHz
Form Factor
SO-DIMM 204-pin
Slots
1 (Total) / 0 (empty)
Configuration Features
1 x 4 GB
Hard Drive
Type
SSD
Capacity
1 x 128 GB
Features
Multi-level cell (MLC) multi-level cell (MLC)
Storage Controller
Type
SATA
Optical Storage
Type
No optical drive
Monitor
Monitor Type
LED
Touchscreen
Yes
Diagonal Size
10.1"
Native Resolution
1280 x 800 (WXGA)
Widescreen Display
Yes
Image Aspect Ratio
16:10
Horizontal Viewing Angle
170
Vertical Viewing Angle
170
Pixel Pitch
0.1695 mm
Image Brightness
350 cd/m²
Monitor Features
Fanless cooling, Projected Capacitive Touch (P-CAP) technology
Graphics Controller
Graphics Processor
Intel HD Graphics 505
Video Interfaces
VGA
Audio Output
Speakers Included
2 x right / left channel
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi
Features
Wake on LAN (WoL)
Expansion / Connectivity
Bays
1 internal 2.5"
Slots
1 Mini PCIe (full-size) ¦ 1 mSATA (half-size)
Interfaces
1 x LAN (Gigabit Ethernet) ¦ 2 x serial ¦ 1 x VGA ¦ 2 x USB 3.0 ¦ 1 x audio line-out ¦ 1 x microphone
Miscellaneous
Included Accessories
36W ITE adapter
VESA Mounting Interface
75 x 75 mm
Compliant Standards
UL, BSMI, CB, CCC, FCC, IP65, RoHS 2002/95/IEC
Power
Device Type
Power adapter
Power Provided
36 Watt
Power Consumption Operational
10 Watt
Dimensions & Weight
Width
26.54 cm
Depth
3.955 cm
Height
18.24 cm
Weight
1.8 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% (non-condensing)
