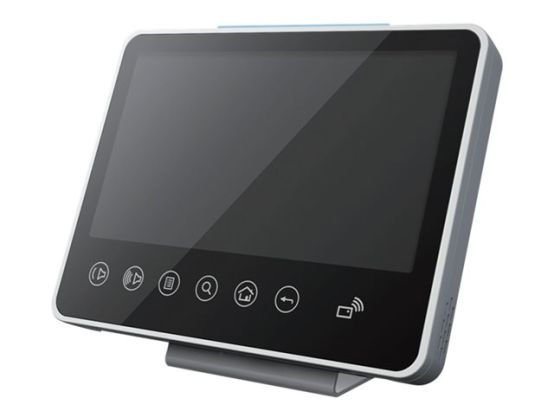

Advantech Ubiquitous Touch Computer UTC-W101BF - all-in-one - Atom N2800 1.86 GHz - 2 GB - SSD 16 GB - LED 10.1"
Manufacture#: UTC-W101BF-ABI0E
Checking delivery…
Product details
All-in-one
Atom N2800 up to
RAM 2 GB
SSD 16 GB
Payment options available at checkout
Main features
Advantech Ubiquitous Touch Computer UTC-W101BF
All-in-one
Atom N2800 up to
RAM 2 GB
SSD 16 GB
Gigabit Ethernet WLAN:
Bluetooth, Wi-Fi
monitor: LED 10.1" 1024 x 768 (XGA) touchscreen
Overview
The UTC-W101BF is a fanless all-in-one PC with a wide format resistive touch-based LCD panel. Not only a cost effective, but also a versatile all-in-one solution to meet the vast demand emerging from markets.
Low power consumption
Provides a natural viewing experience
Product Description
Advantech Ubiquitous Touch Computer UTC-W101BF - all-in-one - Atom N2800 1.86 GHz - 2 GB - SSD 16 GB - LED 10.1"
Type
Personal computer - all-in-one
Processor
Intel Atom N2800 / 1.86 GHz
Cache Memory
1 MB L2 Cache
Cache Per Processor
1 MB
RAM
2 GB (installed) / 4 GB (max) - DDR3 SDRAM
Storage Controller
SATA
Hard Drive
SSD 16 GB - SATA - mSATA
Monitor
10.1" - LED - 1024 x 768 (XGA) - touchscreen
Audio Output
Stereo
Networking
1GbE, Bluetooth, Wi-Fi
Dimensions (WxDxH)
25.8 cm x 3.83 cm x 19.9 cm
Weight
2.47 kg
General
Type
Personal computer
Product Form Factor
All-in-one
Built-in Devices
RFID reader
Processor / Chipset
CPU
Intel Atom N2800
Clock Speed
1.86 GHz
CPU Qty
1
Max CPU Qty
1
Chipset Type
Intel NM10 Express
Cache Memory
Installed Size
L2 Cache - 1 MB
Cache Per Processor
1 MB
RAM
Installed Size
2 GB / 4 GB (max)
Technology
DDR3 SDRAM
Effective Memory Speed
1067 MHz
Form Factor
SO-DIMM 204-pin
Slots
1 (Total)
Hard Drive
Type
SSD - mSATA
Capacity
1 x 16 GB
Interface Type
SATA
Storage Controller
Type
SATA
Monitor
Monitor Type
LED
Touchscreen
Yes
Diagonal Size
10.1"
Native Resolution
1024 x 768 (XGA)
Widescreen Display
No
Image Brightness
200 cd/m²
Monitor Features
4-Wire Resistive Touch Screen Technology
Audio Output
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Audio Input
Type
Microphone
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, Wi-Fi
Features
Wake on LAN (WoL)
Expansion / Connectivity
Slots
1 Mini PCIe
Interfaces
1 x LAN (Gigabit Ethernet) ¦ 2 x serial ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Miscellaneous
VESA Mounting Interface
75 x 75 mm
Compliant Standards
FCC Class B certified, UL, BSMI, CB, CCC, UL 60601-1, NEMA Type 4, EN 60601-1, IP65, IEC 60601-1
Power
Device Type
Power adapter
Power Provided
40 Watt
Power Consumption Operational
14 Watt
Dimensions & Weight
Width
25.8 cm
Depth
3.83 cm
Height
19.9 cm
Weight
2.47 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95% (non-condensing)
