CORTEX A17 2G/8G 1XHDMI ANDROID 6.0 IMM
Manufacture#: USM-110A-WR110
Checking delivery…
Product details
Digital signage player
2 GB RAM
8 GB
ARM Cortex-A17
Payment options available at checkout
Main features

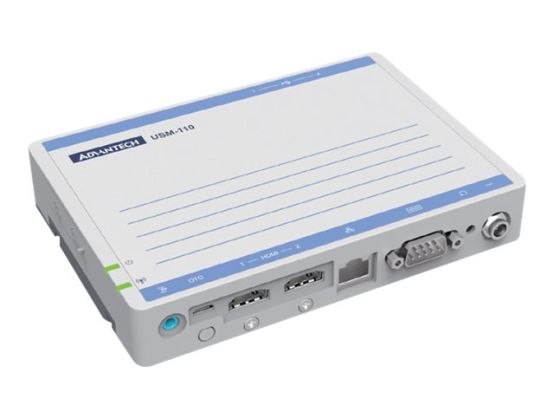

Advantech USM-110W Delight
Digital signage player
2 GB RAM
8 GB
ARM Cortex-A17
Android 6.0
4K UHD (2160p)
Overview
USM-110W is an edge solution-ready platform aimed at diverse clinical applications. Powered by an efficient processor and featuring a dual HDMI interface for video recording and analysis and gateway to collect data. USM-110W provides a cost-effective, scalable solution for edge-to-hospital information system and IoT applications.
Product Description
Advantech USM-110W Delight - digital signage player
Device Type
Digital signage player
Dimensions (WxDxH)
15.6 cm x 11.2 cm x 2.8 cm
Processor
ARM Cortex-A17 1.6 GHz Quad-Core x 1
RAM
2 GB - DDR3L SDRAM
Graphics
ARM Mali-T764
Integrated Flash Memory
8 GB
Flash Memory Cards Supported
microSD
Resolution
4K UHD (2160p)
Interfaces
USB 2.0, Gigabit Ethernet, serial, HDMI
Video Playback Formats
MPEG-4, MPEG-2, MPEG-1, VC-1, H.264, VP8, AVS, H.265, MVC
OS Provided
Android 6.0
General
Device Type
Digital signage player
Width
15.6 cm
Depth
11.2 cm
Height
2.8 cm
Weight
430 g
OS Provided
Android 6.0
Fanless
Yes
Interfaces
USB 2.0, Gigabit Ethernet, serial, HDMI
Key Features
Digital audio player, digital photo viewer, digital video player
Features
USB On-The-Go compatible
Processor
Manufacturer
ARM
Type
Cortex-A17
Installed Qty
1
Number of Cores
Quad-Core
Clock Speed
1.6 GHz
RAM
Technology
DDR3L SDRAM
Installed Size
2 GB
Digital Storage
Capacity
8 GB
Video Output
Graphics Processor
ARM Mali-T764
Memory / Storage
Flash Memory Cards Supported
microSD
Integrated Flash Memory
8 GB
Video
Video Playback Formats
MPEG-4, MPEG-2, MPEG-1, VC-1, H.264, VP8, AVS, H.265, MVC
Resolution
4K UHD (2160p)
Connectivity
Connections
2 x HDMI ¦ 4 x USB 2.0 ¦ LAN (Gigabit Ethernet) ¦ USB host ¦ Audio line-out - mini-jack ¦ Serial
Software
Software Included
WISE-Paas/SignageCMS
Miscellaneous
Compliant Standards
UL, BSMI, CB, CCC, FCC, RoHS
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
