Overview

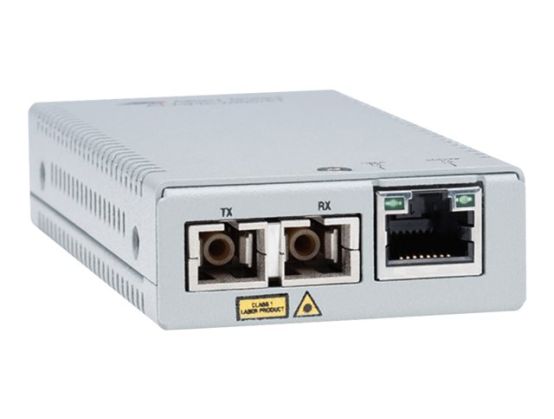

The Allied Telesis MMC200 series of Fast Ethernet mini media converters leverages the smaller size to not only help the environment with a small carbon footprint, but also to save space in working environment. Despite the compact size, the MMC200 series delivers all the power and functionality of standard size media converters.
  • Convert speed as well as media type
  • 2K MAC address tables
  • Store-and-forward switching mode
  • Transparent to IEEE 802.1Q packets
  • Auto Negotiation and Auto MDI / MDIX on 10/100 copper port
  • Far End Fault on 100 Mb fiber
  • 10K byte Jumbo packets
  • Link / activity LED per port
  • Smart MissingLink
  • Fixed SC / ST optics
  • Wall-mountable
Extend networks The MMC200 series mini media converters are the ideal solution for upgrading a traditional 10 Mbps Ethernet network or extending a 100 Mbps Fast Ethernet network. The MMC200 series is designed to extend the distance of a network by converting Fast Ethernet data between twisted pair and fiber-optic cabling. The MMC200 features a 100FX fiber port and a 100TX twisted-pair port. VLAN support Many backbone switch products the IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC200 switches are fully compatible with these long packets, enabling them to be used in modern networks. Small and flexible The smaller size and external power supply of the MMC200 series allows these media converters to be used almost anywhere. Smart MissingLink (SML) The SML feature allows the ports on the media converter to pass the Link status of their connections to each other. When the media converter detects a problem with a port - such as the loss of connection to a node - it shuts down the connection to the other port, thereby notifying the node that the connection has been lost. The Smart MissingLink (SML) allows network managers to quickly identify the source and location of failed segments and minimize downtime. Link Restoration feature Link Restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart / reset them.
