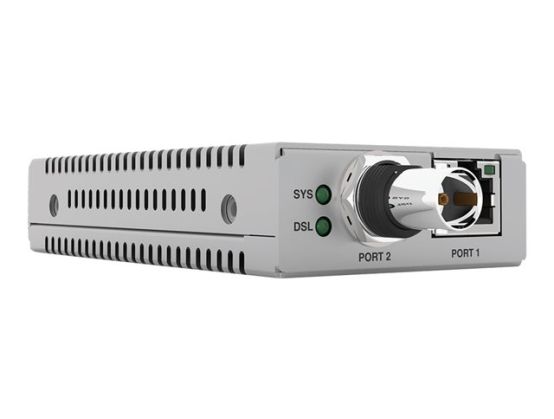

Allied Telesis AT MMC6006 - Network extender - GigE, Ethernet over VDSL2 - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / BNC - up to 3 km
Manufacture#: AT-MMC6006-60
Checking delivery…
Product details
Network extender
Ethernet over VDSL2, 1GbE
1000Base-T, 100Base-TX, 10Base-T
RJ-45 / BNC
Payment options available at checkout
Main features
Allied Telesis AT MMC6006
Network extender
Ethernet over VDSL2, 1GbE
1000Base-T, 100Base-TX, 10Base-T
RJ-45 / BNC
up to 3 km
Overview
Digital cameras running on IP networks offer many benefits in comparison to analog equipment, such as high definition and software image analysis. However, the cost of laying Cat 5e cable for network devices can be prohibitive. The MMC6006 has the solution - you can use existing coax cable for the video signal. Simply connect to the RJ-45 Ethernet port and the unit will automatically auto-sense and configure for 10/100/1000T, as well as full or half-duplex Ethernet operation.
Product Description
Allied Telesis AT MMC6006 - network extender - 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE
Device Type
Network extender - RJ-45 / BNC
Form Factor
External
Cabling Type
1000Base-T, 100Base-TX, 10Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE
Max Transfer Distance
3 km
Power
AC 120/230 V
Dimensions (WxDxH)
5.08 cm x 9.91 cm x 2.03 cm
Weight
200 g
General
Device Type
Network extender
Form Factor
External
Networking
Connectivity Technology
Wired
Cabling Type
1000Base-T, 100Base-TX, 10Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE
Max Transfer Distance
3 km
Status Indicators
Status, link/activity, port duplex mode, system, VDSL
Features
Full duplex mode, half duplex mode, auto-uplink (auto MDI/MDI-X)
Expansion / Connectivity
Interfaces
1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x VDSL2 - BNC female ¦ 1 x management
Miscellaneous
Compliant Standards
UL 1950, CSA, EN55022 Class B, EN 60950, TUV, EN50082-1
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
2 Watt
Dimensions & Weight
Width
5.08 cm
Depth
9.91 cm
Height
2.03 cm
Weight
200 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90% (non-condensing)
