CHA IS CV5001 18 SLOT NO PSU 990-002919-00 IN
Checking delivery…
Product details
- Modular expansion base
- 2U
- rack-mountable
Payment options available at checkout
Main features
- Allied Telesis Converteon AT-CV5001
- Modular expansion base
- 2U
- rack-mountable
Overview
The AT-CV5001 shares common line cards with other Converteon chassis for easier inventory management and smoother product deployment.
Product Description

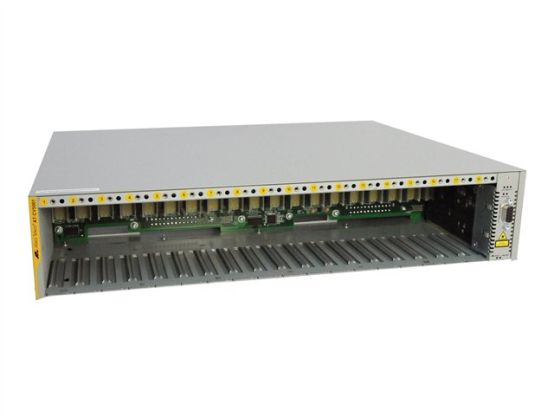

Allied Telesis Converteon AT-CV5001 - modular expansion base
Device Type
Modular expansion base
Form Factor
Rack-mountable - 2U
Dimensions (WxDxH)
44 cm x 34.3 cm x 8.9 cm
Weight
5.5 kg
General
Device Type
Modular expansion base
Height (Rack Units)
2U
Installed Modules Qty (Max)
0 (18)
Width
44 cm
Depth
34.3 cm
Height
8.9 cm
Weight
5.5 kg
Networking
Form Factor
Rack-mountable
Connectivity Technology
Wired
Expansion / Connectivity
Expansion Slots
18 (total) / 18 (free) x expansion slot
Miscellaneous
MTBF
64,000 hours
Compliant Standards
FCC Class A certified, TUV, C-Tick, VCCI Class A ITE, EN55024, EN55022 Class A, UL 60950-1, EN 60950-1, cULus
Power
Power Device
Internal power supply (not installed) - hot-plug
Max Supported Qty
2
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90%
