12SLOT CHASSIS INCL AT-SBX31FAN NO POWER SUPPLIES 990-002928-00
£2205 .22
£2646.26 inc VAT
Checking delivery…
Payment options available at checkout
Main features

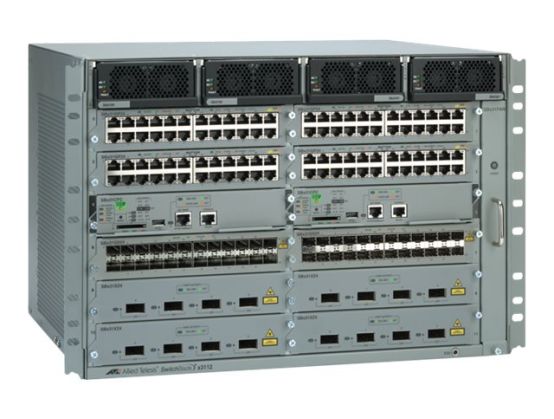

Allied Telesis SwitchBlade AT SBx3112
Switch
rack-mountable
Overview
The SwitchBlade x3112 is designed for carrier network service reliability and redundancy in FTTx applications using 1 G and 10 G optical service blades, data center end of row and enterprise edge services where Power over Ethernet (PoE) is needed.
Product Description
Allied Telesis SwitchBlade AT SBx3112 - switch - rack-mountable
Device Type
Switch
Enclosure Type
Rack-mountable 7U
Features
Modular design
Power Redundancy
Yes
Dimensions (WxDxH)
48 cm x 38.8 cm x 31 cm
Weight
17.8 kg
Manufacturer Warranty
5-year warranty
General
Device Type
Switch
Enclosure Type
Rack-mountable 7U
Features
Modular design
Expansion / Connectivity
Expansion Slots
12 (total) / 12 (free) x Expansion Slot
Installed Modules Qty (Max)
0 (installed) / 12 (max)
Power
Power Device
Internal power supply (not installed) - hot-plug
Max Supported Qty
2
Power Redundancy
Yes
Miscellaneous
MTBF
260,000 hours
Compliant Standards
FCC Class A certified, TUV, C-Tick, EN55024, EN55022 Class A, UL 60950-1, EN 60950-1, EN 60825, cULus
Dimensions & Weight
Width
48 cm
Depth
38.8 cm
Height
31 cm
Weight
17.8 kg
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
