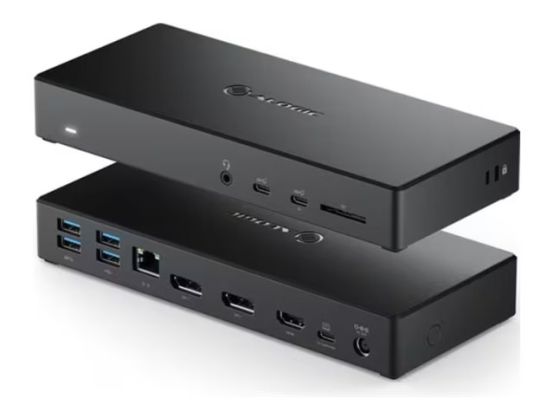

The MA3 dock supports up to three displays at resolutions of up to 4K. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
Product DescriptionALOGIC MA3 - docking station - USB-C - HDMI, 2 x DP - 1GbE
Product TypeDocking station
Docking InterfaceUSB-C
Video InterfacesHDMI, 2 x DP
Dimensions (WxDxH)8.8 cm x 21 cm x 2.9 cm
Weight360 g
ColourBlack
LocalisationAustralia, United Kingdom, United States, Europe
NetworkingGigabit Ethernet
PowerPower adapter 170 Watt Power Provided
Manufacturer Warranty2-year warranty
Extended Specification
General
Product TypeDocking station
Width8.8 cm
Depth21 cm
Height2.9 cm
Weight360 g
Enclosure ColourBlack
LocalisationAustralia, United Kingdom, United States, Europe
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SD Memory Card
Interfaces2 x display / video - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x USB-C 3.1 Gen 2 - 24 pin USB-C ¦ 2 x USB-C 3.1 Gen 1 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous
FeaturesUp to 3 monitors support, 4K Ultra HD, DisplayPort Alt Mode, 100W power delivery, Apple Charge
Compliant StandardsPlug and Play, FCC, RoHS, BC1.2, DisplayPort 1.4, DSC
