All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.¦Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load. The 2 ball bearing structure provides longer life time.¦80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.¦In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

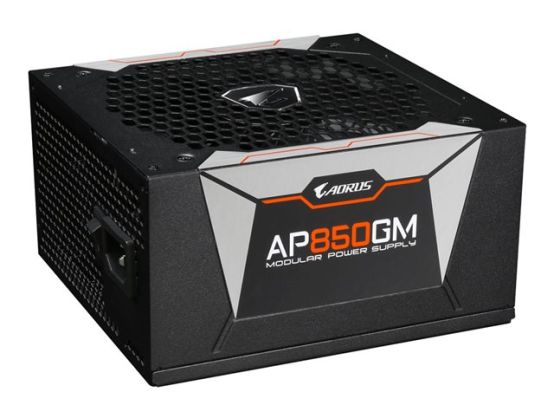

Product DescriptionAORUS P850W GP-AP850GM - power supply - 850 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.3/ EPS12V
80 PLUS Certification80 PLUS Gold
LocalisationUnited Kingdom
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity850 Watt
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Modular Cable ManagementYes
Cooling System135 mm fan
Included Accessories100mm floppy adapter
Dimensions (WxDxH)15 cm x 16 cm x 8.6 cm
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.3/ EPS12V
PSU Form FactorATX
LocalisationUnited Kingdom
Power Device
Input VoltageAC 100-240 V
Frequency Required47 - 63 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage+3.3, +5, ±12 V
Power Capacity850 Watt
Output Current+5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 70.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency90%
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Included Accessories100mm floppy adapter
MTBF100,000 hours
Cooling System135 mm fan
FeaturesOver current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, dual ball bearing cooling fan, thermal protection, fully modular
