GIGABYTE

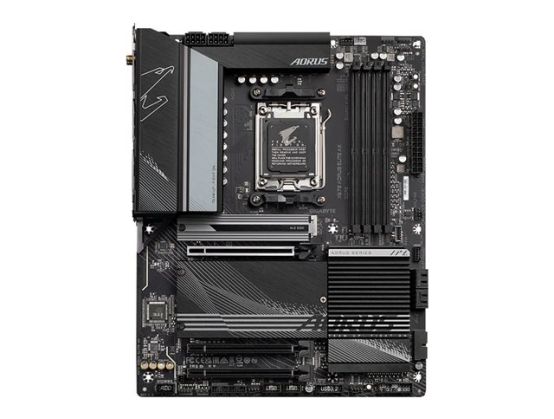

MB AMD X670 AORUS ELITE AX DDR5 ATX

Name: MB AMD X670 AORUS ELITE AX DDR5 ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004437
Price: 227.05 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004437

Manufacture#: X670 AORUS ELITE AX

£189.21

£227.05 inc VAT

Checking delivery…

Product details

1.0
motherboard
ATX
Socket AM5

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

AORUS X670 ELITE AX
1.0
motherboard
ATX
Socket AM5
AMD X670 Chipset
USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2
2.5 Gigabit LAN, Bluetooth, Wi-Fi 6
onboard graphics (CPU required)
High Definition Audio (7.1-channel)

Overview

AORUS X670 ELITE AX - 1.0 - motherboard - ATX - Socket AM5 - AMD X670

Specification

Product Description AORUS X670 ELITE AX - 1.0 - motherboard - ATX - Socket AM5 - AMD X670

Product Type Motherboard - ATX

Chipset Type AMD X670

Processor Socket 1 x Socket AM5

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio High Definition Audio (7.1-channel)

LAN 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax

General

Product Type Motherboard - ATX

Chipset Type AMD X670

Processor Socket Socket AM5

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6666 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology

Audio

Type High Definition Audio (7.1-channel)

Compliant Standards High Definition Audio

LAN

Network Controller AMD RZ616 (MT7922A22M)

Network Interfaces 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 6 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x HDMI ¦ 4 x USB 2.0

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring System voltage, fan control, fan fail warning, water cooling flow rate

Hardware Features 16+2+2 Phase Power Design, 2x Copper PCB, 70A Smart Power Stage, 8 Layer PCB, GIGABYTE Smart Fan 6, Solid Pin Power Connectors, RGB FUSION 2.0, DIY Friendly Design, Ultra Durable, Q-Flash Plus, Q-Flash

Miscellaneous

Included Accessories External antenna, RGB (RGBW) LED strip extension cable

Software Included Norton Internet Security

Compliant Standards HDCP 2.3

Width 30.5 cm

Depth 24.4 cm
