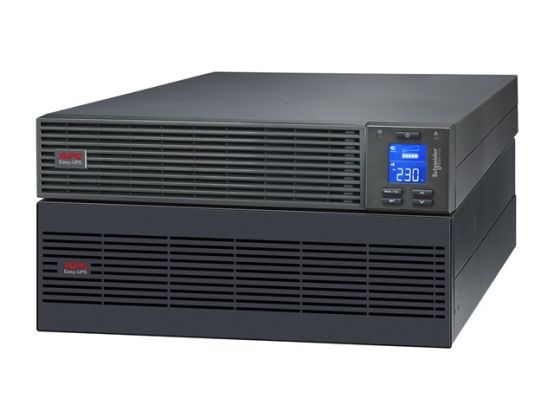

APC Easy UPS On-Line SRV - UPS - 5000 Watt - 5000 VA - 9 Ah - with Rail Kit
£1984.44
£2381.33 inc VAT
Checking delivery…
Product details
- UPS (rack-mountable)
- AC 230 V
- 5000 Watt
- 5000 VA
Payment options available at checkout
Main features
- APC Easy UPS On-Line SRV
- UPS (rack-mountable)
- AC 230 V
- 5000 Watt
- 5000 VA
- 9 Ah
- USB, RS-232
- output connectors: 1
- 5U
- RAL 7010
- with Rail Kit
Overview
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- 94% efficiency rating for optimal energy use
- Runtime of up to 10 min at full load, extending to 26 min at half load
- Comprehensive connectivity with USB, RS-232, and EPO options
- Includes maintenance-free, sealed lead acid battery for reliability
- Rack-mountable design with included Rail Kit for easy integration
Intelligent Card Slot
Customize UPS capabilities with management cards.
Product Description
APC Easy UPS On-Line SRV - UPS - 5000 Watt - 5000 VA - 9 Ah - with Rail Kit
Device Type
UPS - rack-mountable
Rack Size
5U
Weight
78 kg
Input Voltage
AC 230 V
Output Voltage
AC 220/230/240 V ± 1%
Power Capacity
5000 Watt / 5000 VA
Input Connectors
Hardwire 3-wire (1P+ N + E)
Battery
Lead Acid - 9 Ah
Run Time (Up To)
10 min at full load
Networking
USB, RS-232
Included Accessories
Rack mounting brackets, rack mounting rails
Colour
RAL 7010
Dimensions (WxDxH)
43.8 cm x 61.5 cm x 21.95 cm
Manufacturer Warranty
2-year warranty
Bundled with
Rail Kit
General
Device Type
UPS - rack-mountable
Height (Rack Units)
5U
Colour
RAL 7010
Bundled with
Rail Kit
Power Device
UPS Technology
On-line
Input Voltage
AC 230 V
Input Voltage Range
AC 176 - 300 V
Frequency Provided
50/60 Hz ± 3Hz
Frequency Required
40 - 70 Hz
Input Connectors
Hardwire 3-wire (1P+ N + E)
Output Voltage
AC 220/230/240 V ± 1% - 50/60 Hz
Power Capacity
5000 Watt / 5000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
600 Joules
Efficiency
94%
Battery
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
26 min at half load ¦ 10 min at full load
Features
Maintenance free, sealed
Networking
Remote Management Interface
USB, RS-232
Expansion / Connectivity
Interfaces
1 x management (USB) ¦ 1 x management (RS-232) ¦ EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Included Accessories
Rack mounting brackets, rack mounting rails
Cables Included
USB cable ¦ Serial cable ¦ DC power cable
Rack Mounting Kit
Included
Features
LCD display, LED indicators, automatic self-test, Eco-Mode
Compliant Standards
IP20, EAC, IEC/EN 62040-1, IEC/EN 62040-2
Software / System Requirements
Software Included
APC Easy Ups Online SNMP Shutdown Wizard
Manufacturer Warranty
Service & Support
Limited warranty - replace or repair - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
55 dB
Dimensions & Weight
Width
43.8 cm
Depth
61.5 cm
Height
21.95 cm
Weight
78 kg
Dimensions & Weight (Shipping)
Shipping Width
87 cm
Shipping Depth
60 cm
Shipping Height
49 cm
Shipping Weight
88 kg
