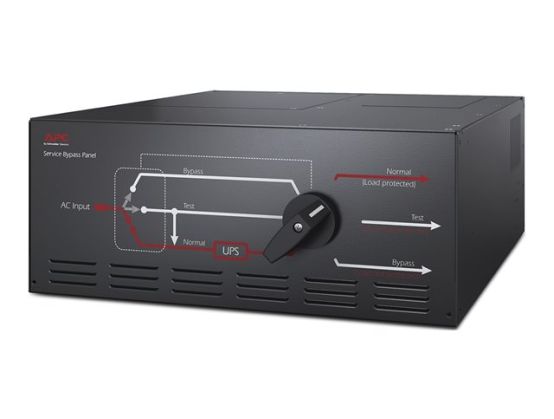

APC Service Bypass Panel - bypass switch - 20000 VA
£1511.07
£1813.28 inc VAT
Checking delivery…
Product details
- Bypass switch (rack-mountable)
- AC 200/208/220/230/240/380/400 V
- 20000 VA
- output connectors: 2
Payment options available at checkout
Main features
- APC Service Bypass Panel
- Bypass switch (rack-mountable)
- AC 200/208/220/230/240/380/400 V
- 20000 VA
- output connectors: 2
- black
- for P/N: SURT10000XLT-1TF, SURT10000XLT-2TF3-D, SURT14KRMXLJ, SURT18KRMXLJ, SURT20KUXI-IN
Overview
APC Service Bypass Panel - bypass switch - 20000 VA
- 19 inch rack-mountable
- Meets UL requirements
- Quick transfer rate
- Wrap around system bypass
Product Description
APC Service Bypass Panel - bypass switch - 20000 VA
Device Type
Bypass switch - rack-mountable
Weight
19.3 kg
Input Voltage
AC 200/208/220/230/240/380/400 V
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
20000 VA
Input Connectors
3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (HN + E)
Output connectors
1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 3-wire (HN + E)
Colour
Black
Dimensions (WxDxH)
43.2 cm x 55.4 cm x 17.8 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: SURT10000XLT-1TF, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-D, SURT10000XLT-2TF3-TU, SURT10000XLTQ, SURT14KRMXLJ, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLI-CC, SURT8000RMXLICH, SYA12K16PXRK, SYA12K16PXR-TU2
General
Device Type
Bypass switch - rack-mountable
Colour
Black
Power Device
Input Voltage
AC 200/208/220/230/240/380/400 V
Input Voltage Range
AC 200 - 240 V
Frequency Required
50/60 Hz
Input Connectors
3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (HN + E)
Power Output Connectors Details
1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 3-wire (HN + E)
Output Voltage
AC 200/208/220/230/240 V
Max Electric Current
125 A
Power Capacity
20000 VA
Miscellaneous
Cables Included
Power cable
Rack Mounting Kit
Included
Features
Overload protection
Compliant Standards
CSA, GOST, EN 60950, UL 1778, IEC 60950, RoHS, REACH
Manufacturer Warranty
Service & Support
Limited warranty - parts - 2 years
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95%
Dimensions & Weight
Width
43.2 cm
Depth
55.4 cm
Height
17.8 cm
Weight
19.3 kg
Dimensions & Weight (Shipping)
Shipping Width
61 cm
Shipping Depth
84.5 cm
Shipping Height
30.5 cm
Shipping Weight
31.4 kg
Compatibility Information
Designed For
P/N: SURT10000XLT-1TF, SURT10000XLT-1TF10K, SURT10000XLT-1TF3, SURT10000XLT-2TF3, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-BN, SURT10000XLT-2TF3-D, SURT10000XLT2TF3-T, SURT10000XLT-2TF3-TU, SURT10000XLT-2T-TU, SURT10000XLTQ, SURT10000XLT-TU, SURT14KRMXLJ, SURT15KRMXLI, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLI, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLI-270504, SURT8000RMXLI-CC, SURT8000RMXLICH, SURT8000XLT-1TF5, SURT8000XLTW, SYA12K16P-TU, SYA12K16PXRK, SYA12K16PXR-TU, SYA12K16PXR-TU2, SYA8K16PXR-TU, SYA8K8P-TRADEUPS, SYA8K8P-TU
