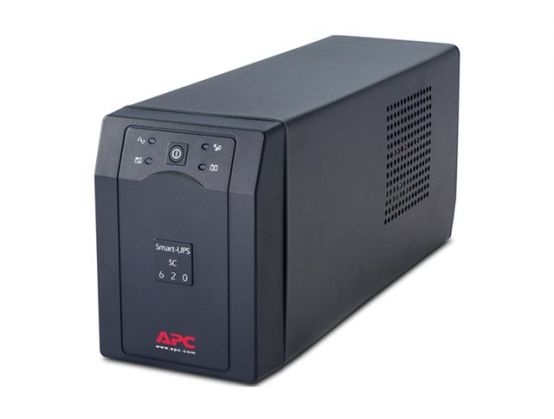

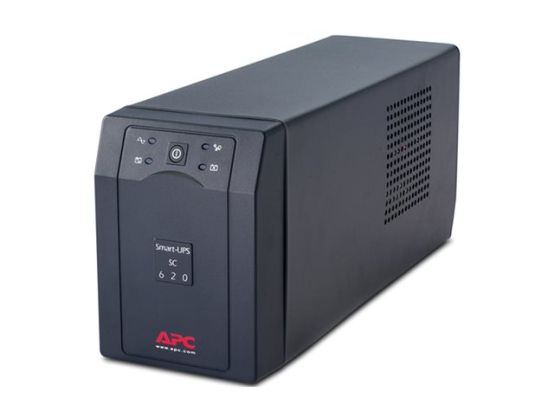

APC Smart-UPS SC 620VA 230V

Name: APC Smart-UPS SC 620VA 230V
Brand: APC
SKU: 1TPOWUPS-006323
Price: 332.12 GBP
Availability: OutOfStock

SKU

1TPOWUPS-006323

Manufacture#: SC620I

Be the first to review this product

£276.77

£332.12 inc VAT

Order by 15:00 and receive your order on Thursday 20 Mar

Product details

UPS
AC 230 V
390 Watt
620 VA

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

APC Smart-UPS SC 620VA
UPS
AC 230 V
390 Watt
620 VA
RS-232
output connectors: 4
grey

Overview

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Specification

Product Description APC Smart-UPS SC 620VA - UPS - 390 Watt - 620 VA

Device Type UPS - external

Weight 12 kg

Input Voltage AC 230 V

Output Voltage AC 230 V ± 5%

Power Capacity 390 Watt / 620 VA

Input Connectors 1 x power IEC 60320 C14

Output connectors 3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)

Battery Lead Acid

Battery Form Factor Internal

Batteries Qty 1

Run Time (Up To) 5.5 min at full load

Networking RS-232

Colour Grey

Dimensions (WxDxH) 11.9 cm x 36.8 cm x 16.8 cm

Manufacturer Warranty 2-year warranty

General

Device Type UPS - external

Battery Enclosure Type Internal

Colour Grey

Power Device

UPS Technology Line interactive

Input Voltage AC 230 V

Input Voltage Range AC 160 - 286 V

Input Voltage Range (Adjustable) AC 151 - 302 V

Frequency Provided 50/60 Hz

Frequency Required 50/60 Hz

Input Connectors 1 x power IEC 60320 C14

Power Output Connectors Details 3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)

Output Voltage AC 230 V ± 5% - 50/60 Hz

Power Capacity 390 Watt / 620 VA

Dataline Surge Protection Network/phone line - RJ-45/RJ-11

Output Waveform Stepped approximation to a sinewave

Surge Suppression Yes

Surge Energy Rating 320 Joules

Battery

Quantity 1

Technology Lead Acid

Run Time (Up To) 5.5 min at full load

Networking

Remote Management Interface RS-232

Expansion / Connectivity

Interfaces 1 x RS-232 - 9 pin D-Sub (DB-9)

Miscellaneous

Cables Included Serial cable

Features Audible alarm, audible alarm, LED indicators

Compliant Standards FCC Class B certified, CSA, NOM, UL 1449, UL 1778, FCC Part 15

Software / System Requirements

Software Included APC PowerChute Business Edition

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 2 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 0 - 95%

Sound Emission 45 dBA

Dimensions & Weight

Width 11.9 cm

Depth 36.8 cm

Height 16.8 cm

Weight 12 kg

Reviews

Read reviews

There are currently no reviews for this product

Be the first to add a review

Add a review

Accessories

SCHNEIDER ELECTRIC

APC Power Cord, C13 to C14, 2.5m

10+ in stock

APC

Power Cord, C13 to C14, 2.5m

£26.40

£31.68 inc VAT

APC APC - power cable - power IEC 60320 C13 to IEC 60320 C14 - 1.22 m

4 in stock

APC

APC - power cable - power IEC 60320 C13 to IEC 60320 C14 - 1.22 m

£81.20

£97.44 inc VAT

APC Switched Rack PDU AP7920B - Power distribution strip - AC 200/208/230 V - 2300 VA - Ethernet - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - 19" - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX7

APC APC Switched Rack PDU AP7920B - Power distribution strip - AC 200/208/230 V - 2300 VA - Ethernet - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - 19" - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX7

10+ in stock

APC

APC Switched Rack PDU AP7920B - Power distribution strip - AC 200/208/230 V - 2300 VA - Ethernet - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - 19" - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX7

£605.03

£726.04 inc VAT

APC Power Cord, C14 to BS1363 (UK), 0.6m

10+ in stock

APC

Power Cord, C14 to BS1363 (UK), 0.6m

£46.70

£56.04 inc VAT

APC Basic Rack PDU AP6015A - Power distribution unit (rack-mountable) - AC 100/120/200/208/230/240 V - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750

APC APC Basic Rack PDU AP6015A - Power distribution unit (rack-mountable) - AC 100/120/200/208/230/240 V - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750

10+ in stock

APC

APC Basic Rack PDU AP6015A - Power distribution unit (rack-mountable) - AC 100/120/200/208/230/240 V - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750

£53.05

£63.66 inc VAT

APC Metered Rack PDU AP7850B - Power distribution unit (rack-mountable) - AC 230 V - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 0U - 3.05 m cord - for P/N: SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

APC APC Metered Rack PDU AP7850B - Power distribution unit (rack-mountable) - AC 230 V - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 0U - 3.05 m cord - for P/N: SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

1 in stock

APC

APC Metered Rack PDU AP7850B - Power distribution unit (rack-mountable) - AC 230 V - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 0U - 3.05 m cord - for P/N: SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

£507.72

£609.26 inc VAT

APC Switched Rack PDU Zero U - Power distribution strip (rack-mountable) - AC 200/208/230 V - Ethernet 10/100 - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 3.05 m cord - black - for P/N: SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, S

APC APC Switched Rack PDU Zero U - Power distribution strip (rack-mountable) - AC 200/208/230 V - Ethernet 10/100 - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 3.05 m cord - black - for P/N: SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, S

10+ in stock

APC

APC Switched Rack PDU Zero U - Power distribution strip (rack-mountable) - AC 200/208/230 V - Ethernet 10/100 - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 3.05 m cord - black - for P/N: SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, S

£1065.79

£1278.95 inc VAT

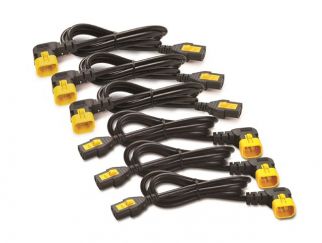

APC Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

10 in stock

APC

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

£50.77

£60.92 inc VAT

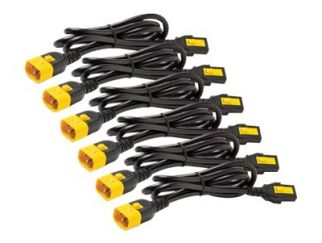

APC Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

10+ in stock

APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

£79.20

£95.04 inc VAT

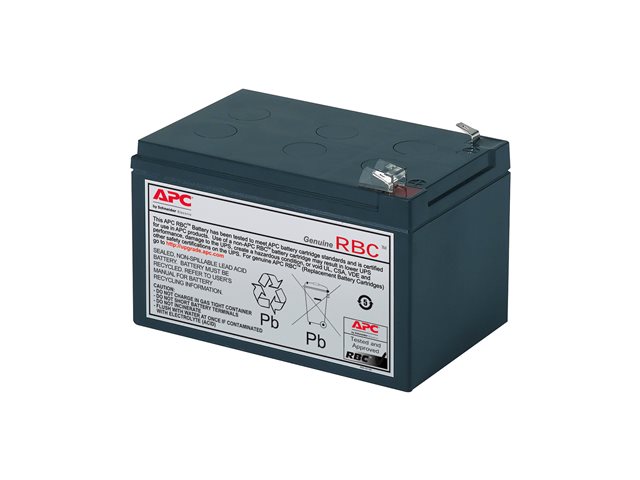

APC Replacement Battery Cartridge #4 - UPS battery - 1 x battery - Lead Acid - black - for P/N: BE 700 YIN, BE750BB-CN, BE800-IND, BK650I, BP500JPNP, BP650SX107, SC620X565, SU620I

APC APC Replacement Battery Cartridge #4 - UPS battery - 1 x battery - Lead Acid - black - for P/N: BE 700 YIN, BE750BB-CN, BE800-IND, BK650I, BP500JPNP, BP650SX107, SC620X565, SU620I

10+ in stock

APC

APC Replacement Battery Cartridge #4 - UPS battery - 1 x battery - Lead Acid - black - for P/N: BE 700 YIN, BE750BB-CN, BE800-IND, BK650I, BP500JPNP, BP650SX107, SC620X565, SU620I

£79.40

£95.28 inc VAT

Cables

APC Power Cord, C13 to C14, 2.5m

10+ in stock

APC

Power Cord, C13 to C14, 2.5m

£26.40

£31.68 inc VAT

APC APC - power cable - power IEC 60320 C13 to IEC 60320 C14 - 1.22 m

4 in stock

APC

APC - power cable - power IEC 60320 C13 to IEC 60320 C14 - 1.22 m

£81.20

£97.44 inc VAT

APC Power Cord, C14 to BS1363 (UK), 0.6m

10+ in stock

APC

Power Cord, C14 to BS1363 (UK), 0.6m

£46.70

£56.04 inc VAT

APC Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

10 in stock

APC

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

£50.77

£60.92 inc VAT

APC Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

10+ in stock

APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

£79.20

£95.04 inc VAT

APC

APC Power Cord, C13 to C14, 2.5m

10+ in stock

APC

Power Cord, C13 to C14, 2.5m

£26.40

£31.68 inc VAT

APC APC - power cable - power IEC 60320 C13 to IEC 60320 C14 - 1.22 m

4 in stock

APC

APC - power cable - power IEC 60320 C13 to IEC 60320 C14 - 1.22 m

£81.20

£97.44 inc VAT

10+ in stock

APC

£605.03

£726.04 inc VAT

APC Power Cord, C14 to BS1363 (UK), 0.6m

10+ in stock

APC

Power Cord, C14 to BS1363 (UK), 0.6m

£46.70

£56.04 inc VAT

10+ in stock

APC

£53.05

£63.66 inc VAT

1 in stock

APC

£507.72

£609.26 inc VAT

10+ in stock

APC

£1065.79

£1278.95 inc VAT

APC Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

10 in stock

APC

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

£50.77

£60.92 inc VAT

APC Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

10+ in stock

APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

£79.20

£95.04 inc VAT

APC APC Replacement Battery Cartridge #4 - UPS battery - 1 x battery - Lead Acid - black - for P/N: BE 700 YIN, BE750BB-CN, BE800-IND, BK650I, BP500JPNP, BP650SX107, SC620X565, SU620I

10+ in stock

APC

APC Replacement Battery Cartridge #4 - UPS battery - 1 x battery - Lead Acid - black - for P/N: BE 700 YIN, BE750BB-CN, BE800-IND, BK650I, BP500JPNP, BP650SX107, SC620X565, SU620I

£79.40

£95.28 inc VAT

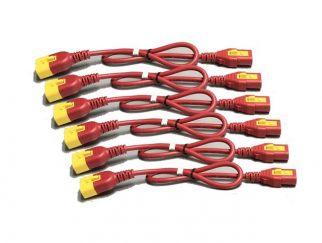

APC - Power cable - power IEC 60320 C13 locking to IEC 60320 C14 locking - 60 cm - red (pack of 6) - for P/N: SCL500RMI1UC, SCL500RMI1UNC, SMT3000I-AR, SMT3000R2I-AR, SMTL750RMI2UC, SRT1500RMXLI
