APC

APC DIN RAIL - PANEL MOUNT UPS .

Name: APC DIN RAIL - PANEL MOUNT UPS .
Brand: APC
SKU: 1TACCBAT-012772
Price: 1003.08 GBP
Availability: OutOfStock

SKU

1TACCBAT-012772

Manufacture#: SUA500PDRI-H

£835.90

£1003.08 inc VAT

Checking delivery…

Product details

UPS (DIN rail mountable)
AC 220/230/240 V
325 Watt
500 VA

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

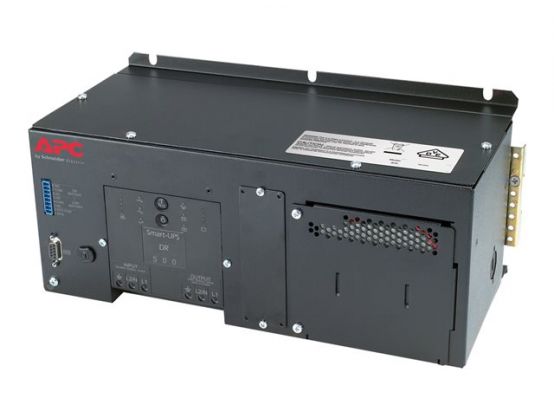

APC Smart-UPS SUA500PDRI-H
UPS (DIN rail mountable)
AC 220/230/240 V
325 Watt
500 VA
RS-232
output connectors: 1
black

Overview

Proven Industrial UPS power protection for control applications and harsh environments.

Specification

Product Description APC Smart-UPS SUA500PDRI-H - UPS - 325 Watt - 500 VA

Device Type UPS - DIN rail mountable

Weight 12.86 kg

Input Voltage AC 220/230/240 V

Output Voltage AC 220/230/240 V ± 5%

Power Capacity 325 Watt / 500 VA

Input Connectors 1

Output connectors 1 x hardwire 3-wire (1PH + N + G)

Battery Lead Acid

Batteries Qty 1

Run Time (Up To) 8 min at full load

Networking RS-232

Colour Black

Dimensions (WxDxH) 36.2 cm x 17.1 cm x 14.8 cm

Manufacturer Warranty 2-year warranty

General

Device Type UPS - DIN rail mountable

Colour Black

Power Device

UPS Technology Line interactive

Input Voltage AC 220/230/240 V

Input Voltage Range AC 160 - 285 V

Input Voltage Range (Adjustable) AC 151 - 302 V

Frequency Required 50/60 Hz

Input Connectors 1

Power Output Connectors Details 1 x hardwire 3-wire (1PH + N + G)

Output Voltage AC 220/230/240 V ± 5%

Power Capacity 325 Watt / 500 VA

Surge Suppression Yes

Surge Energy Rating 540 Joules

Efficiency 94%

Battery

Quantity 1

Technology Lead Acid

Run Time (Up To) 8 min at full load ¦ 24 min at half load

Recharge Time 2.5 hours

Networking

Remote Management Interface RS-232

Expansion / Connectivity

Interfaces 1 x management (RS-232) - 9 pin D-Sub (DB-9)

Expansion Slots 1 (total) / 1 (free) x SmartSlot

Miscellaneous

Features Audible alarm, automatic self-test, hot-swappable batteries, cold-start function, LED indicators, emergency power off

Compliant Standards UL, UL 1449, RoHS, REACH, VDE

Manufacturer Warranty

Service & Support Limited warranty - replacement - 2 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 0 - 95%

Sound Emission 55 dBA

Dimensions & Weight

Width 36.2 cm

Depth 17.1 cm

Height 14.8 cm

Weight 12.86 kg

Dimensions & Weight (Shipping)

Shipping Width 29.7 cm

Shipping Depth 29.7 cm

Shipping Height 48.1 cm

Shipping Weight 13.32 kg

Product Accessories

SCHNEIDER ELECTRIC

APC APC - temperature & humidity sensor

10+ in stock

APC

APC - temperature & humidity sensor

£126.31

£151.57 inc VAT

APC APC - temperature sensor

10+ in stock

APC

APC - temperature sensor

£79.90

£95.88 inc VAT

Desktop Accessories

APC APC - temperature & humidity sensor

10+ in stock

APC

APC - temperature & humidity sensor

£126.31

£151.57 inc VAT

APC APC - temperature sensor

10+ in stock

APC

APC - temperature sensor

£79.90

£95.88 inc VAT

Network Security

APC APC - temperature & humidity sensor

10+ in stock

APC

APC - temperature & humidity sensor

£126.31

£151.57 inc VAT

Power Accessories

APC APC - temperature & humidity sensor

10+ in stock

APC

APC - temperature & humidity sensor

£126.31

£151.57 inc VAT

APC APC - temperature sensor

10+ in stock

APC

APC - temperature sensor

£79.90

£95.88 inc VAT

APC

APC APC - temperature & humidity sensor

10+ in stock

APC

APC - temperature & humidity sensor

£126.31

£151.57 inc VAT

APC APC - temperature sensor

10+ in stock

APC

APC - temperature sensor

£79.90

£95.88 inc VAT

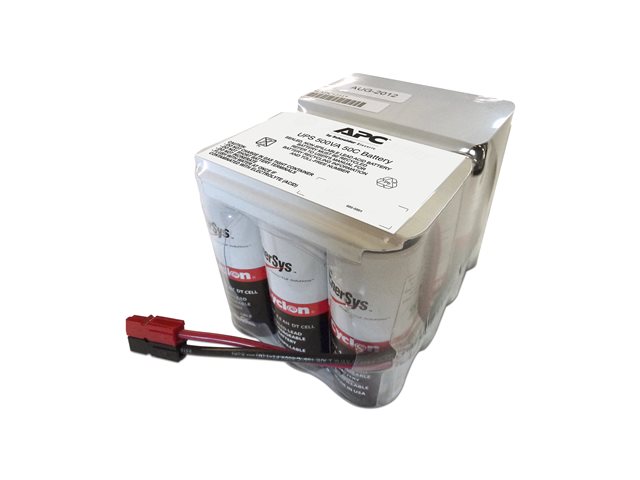

APC APC Replacement Battery Cartridge #136 - UPS battery - Lead Acid - 108 Wh
