Overview

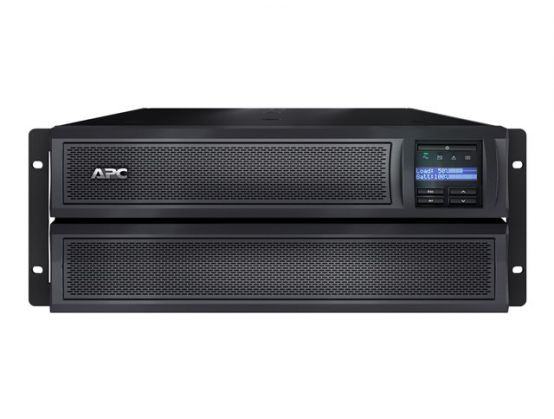

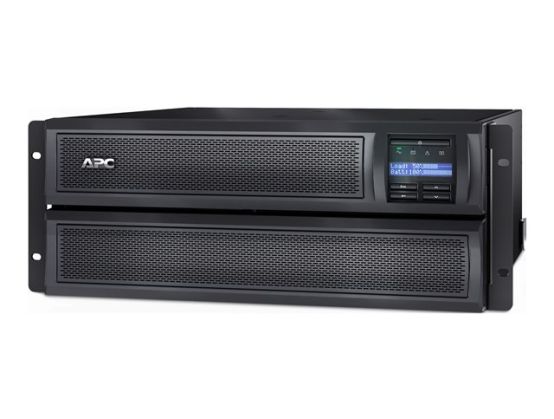

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120BP external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Intelligent battery management
  • Power conditioning
  • Temperature-compensated battery charging
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
  • Disconnected battery notification
  • Audible alarms
  • LED status indicators
  • Adjustable voltage sensitivity
Auto recognition of external batteries UPS recognizes when external battery packs are attached and automatically adjusts runtime. Cold-start capable Provides temporary battery power when the utility power is out. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. High frequency design Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. High online efficiency Reduces utility costs, generates less heat. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Intelligent Card Slot Customize UPS capabilities with management cards. Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Multiple switched outlet groups Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment. Scalable runtime Allows additional run time to be quickly added as needed. Sequenced network shutdown and reboot Customize network shutdown and reboot sequence of connected servers and UPSs. StruxureWare Data Center Expert compatible Enables centralized management via StruxureWare Data Center Expert. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
