Overview

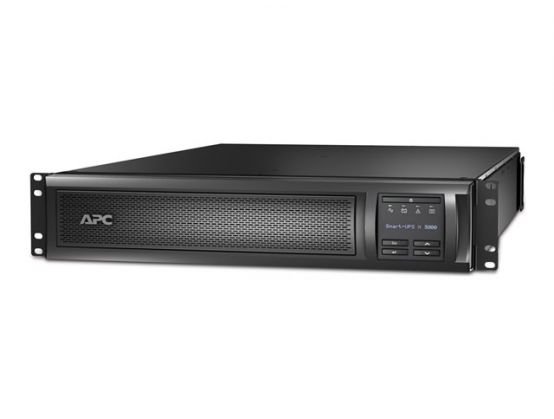

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
  • 3kVA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Graceful shutdown using serial or USB cables via PowerChute Business Edition
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications
Intuitive LCD interface It provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. High frequency design It reduces or eliminates bulky transformers resulting in lighter units for ease of handling. Auto recognition of external batteries UPS recognizes when external battery packs are attached and automatically adjusts runtime. Predictive replace battery date It dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Green mode Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter It provides actual kilowatt hours of usage for energy conscious users. Audible alarms Audible alarms provide notification of changing flywheel conditions Pure sine wave output on battery It simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Multiple switched outlet groups Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. Wide input voltage range Wide input voltage range is designed for harsh electrical environments to save battery life. Battery failure notification It provides early-warning fault analysis on batteries enabling timely preventive maintenance High online efficiency It reduces utility costs, generates less heat. LED indicators LED indicators provide easy-to-read status of your utility power conditions, UPS and battery. Overload protection It safeguards unit from damage by automatically turning it off in the event of a short circuit or overload. Cold-start capable It provides temporary battery power when the utility power is out. Hot-swappable batteries It ensures clean, uninterrupted power to protected equipment while batteries are being replaced Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Automatic restart of loads after UPS shutdown It automatically starts up the connected equipment upon the return of utility power. Adjustable voltage-transfer points It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Adjustable voltage sensitivity It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. User-replaceable batteries It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). Serial connectivity It provides management of the UPS via a serial port. Temperature-compensated battery charging It prolongs battery life by regulating the charge voltage according to battery temperature. Boost and trim Automatic Voltage Regulation (AVR) It gives higher application availability by correcting low and high voltage conditions without using the battery. Scalable runtime It allows additional run time to be quickly added as needed. Intelligent battery management It maximizes battery performance, life, and reliability through intelligent, precision charging. Safety-agency approved It ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Rack/tower convertible It protects the initial investment in the UPS when migrating from tower to rack-mount environment. Power conditioning It protects connected loads from surges, spikes, lightning, and other power disturbances. Network manageable It provides remote management of the UPS over the network. Frequency and voltage regulation It gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Predictive failure notification It provides early-warning fault analysis ensuring proactive component replacement.
