SMARTSLOT EXPANSION CHASSIS
Checking delivery…
Product details
- System bus extender
- for Matrix-UPS
Payment options available at checkout
Main features
- APC SmartSlot Expansion Chassis
- System bus extender
- for Matrix-UPS
Overview
UPS management accessory that provides additional SmartSlot interface to your APC SmartSlot UPS.
Product Description

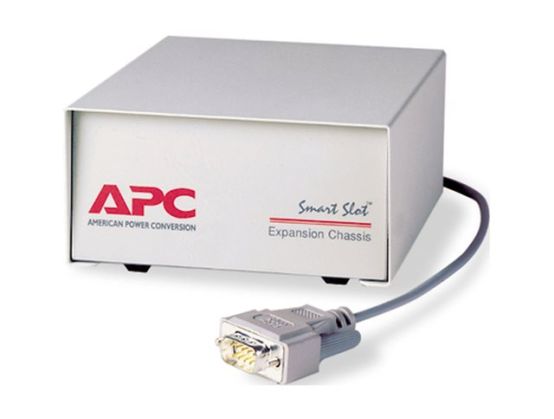

APC SmartSlot Expansion Chassis - system bus extender
Product Type
System bus extender
Dimensions (WxDxH)
12.7 cm x 13.3 cm x 6.4 cm
Weight
0.9 kg
Manufacturer Warranty
2-year warranty
Designed For
Matrix-UPS
General
Product Type
System bus extender
Width
12.7 cm
Depth
13.3 cm
Height
6.4 cm
Weight
0.9 kg
Expansion / Connectivity
Expansion Slots
SmartSlot
Interfaces
1 x management
Connections
1 x management - RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Cables Included
1 x serial cable - integrated
Compliant Standards
FCC Class B certified, VCCI, C-Tick
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Min Storage Temperature
-15 °C
Max Storage Temperature
65 °C
Max Altitude Operating
3 km
Compatibility Information
Designed For
APC Matrix-UPS
