Breakers, Cordsets and Accessories for simplified power distribution management.
Power can be distributed both effectively and efficiently
PDU equipment can easily be relocated to accommodate a changing data center environment
Global safety approvalsUL60950, CSA60950, IEC60950, EN60950 safety approvals. Meets IEC 61000-4-5 Immunity To Surge, and GR-1089-CORE, Section 4, Lightning and AC Power Faults standards.

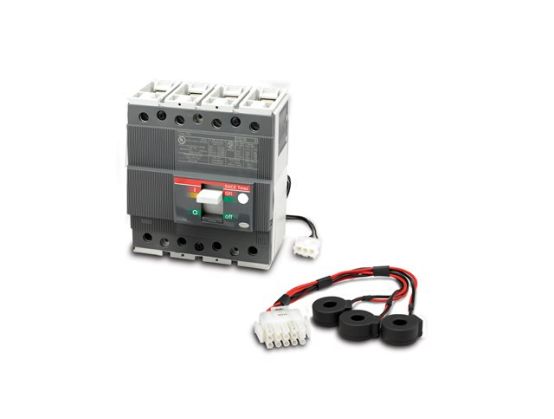

Product DescriptionAPC Type T3 - automatic circuit breaker
Device TypeAutomatic circuit breaker
Weight1.8 kg
Input Wiring3-phase
Input VoltageAC 400/480 V
Output VoltageAC 400/480 V
Output connectors1 x hardwire 4-wire (3PH + N)
Dimensions (WxDxH)20.3 cm x 16.5 cm x 22.9 cm
Manufacturer Warranty1-year warranty
Designed ForSymmetra PX 250kW, 300kW, 400kW, 500kW
Extended Specification
General
Device TypeAutomatic circuit breaker
Power Device
Input VoltageAC 400/480 V
Input Wiring3-phase
Frequency Required50/60 Hz
Power Output Connectors Details1 x hardwire 4-wire (3PH + N)
Output VoltageAC 400/480 V
Max Electric Current200 A
Circuit ProtectionCircuit breaker
Miscellaneous
Compliant StandardsUL, RoHS
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating0 - 95%
Dimensions & Weight
Width20.3 cm
Depth16.5 cm
Height22.9 cm
Weight1.8 kg
Dimensions & Weight (Shipping)
Shipping Width20.3 cm
Shipping Depth16.5 cm
Shipping Height22.9 cm
Shipping Weight2.7 kg
Compatibility Information
Designed ForAPC Symmetra PX 250kW Scalable to 500kW with Left Mounted Maintenance Bypass and Distribution, 250kW Scalable to 500kW with Right Mounted Maintenance Bypass and Distribution, 250kW Scalable to 500kW without Maintenance Bypass or Distribution-Parallel Capable, 300kW Scalable to 500kW with Left Mounted Maintenance Bypass and Distribution, 300kW Scalable to 500kW with Right Mounted Maintenance Bypass and Distribution, 300kW Scalable to 500kW without Maintenance Bypass or Distribution-Parallel Capable, 400kW Scalable to 500kW with Left Mounted Maintenance Bypass and Distribution, 400kW Scalable to 500kW with Right Mounted Maintenance Bypass and Distribution, 400kW Scalable to 500kW without Maintenance Bypass or Distribution-Parallel Capable, 500kW Scalable to 500kW with Left Mounted Maintenance Bypass and Distribution, 500kW Scalable to 500kW with Right Mounted Maintenance Bypass and Distribution, 500kW Scalable to 500kW without Maintenance Bypass or Distribution-Parallel Capable
