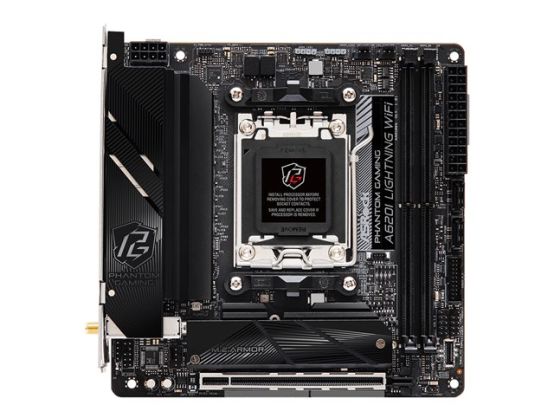

ASRock A620I LIGHTNING WIFI - motherboard - mini ATX - Socket AM5 - AMD A620

Name: ASRock A620I LIGHTNING WIFI - motherboard - mini ATX - Socket AM5 - AMD A620
Brand: ASROCK
SKU: 1TCPTMOT-005017
Price: 159.04 GBP
Availability: OutOfStock

SKU

1TCPTMOT-005017

Manufacture#: 90-MXBMN0-A0UAYZ

£132.53

£159.04 inc VAT

Checking delivery…

Product details

Motherboard
mini ATX
Socket AM5
AMD A620 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASRock A620I LIGHTNING WIFI
Motherboard
mini ATX
Socket AM5
AMD A620 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
2.5 Gigabit LAN, Bluetooth, Wi-Fi
onboard graphics (CPU required)
High Definition Audio (7.1-channel)

Overview

ASRock A620I LIGHTNING WIFI - motherboard - mini ATX - Socket AM5 - AMD A620

Specification

Product Description ASRock A620I LIGHTNING WIFI - motherboard - mini ATX - Socket AM5 - AMD A620

Product Type Motherboard - mini ATX

Chipset Type AMD A620

Processor Socket 1 x Socket AM5

Compatible Processors Ryzen (supports Ryzen 7000/8000 Series)

Max RAM Size 96 GB

RAM Supported 2 DIMM slots - DDR5, non-ECC, ECC, unbuffered

Storage Ports 2 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Ultra M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio High Definition Audio (7.1-channel)

LAN 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

General

Product Type Motherboard - mini ATX

Chipset Type AMD A620

Processor Socket Socket AM5

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen 7000/8000 Series)

Supported RAM

Max Size 96 GB

Technology DDR5

Bus Clock 7200 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology

Audio

Type High Definition Audio (7.1-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Dragon RTL8125BG

Network Interfaces 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x Ultra M.2 (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces 1 x HDMI ¦ 2 x aerial ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, 15µ Gold Finger, 8 Layer PCB, ASRock Full HD UEFI, Dr.MOS MOSFET, Nahimic Audio Enhacer, DIY Friendly Design, 8+2+1 Phase Power Design, reinforced PCIe slots, ASRock Auto Driver Installer, BIOS FlashBack button, ASRock Lightning Gaming Ports, ASRock Polychrome RGB

Miscellaneous

Included Accessories 1 x M.2 screw, 2 x ASRock WiFi 2.4/5/6 GHz Antennas

Cables Included 2 x Serial ATA cable

Software Included ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC

Compliant Standards FCC, ERP, EuP

Width 17 cm

Depth 17 cm
