ASROCK

H510M-HDV R2.0 INTEL/H510/2DDR4/4SATA3

Name: H510M-HDV R2.0 INTEL/H510/2DDR4/4SATA3
Brand: ASROCK
SKU: 1TCPTMOT-003527
Price: 60.32 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003527

Manufacture#: 90-MXBGS0-A0UAYZ

£50.27

£60.32 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1200 Socket
H510 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

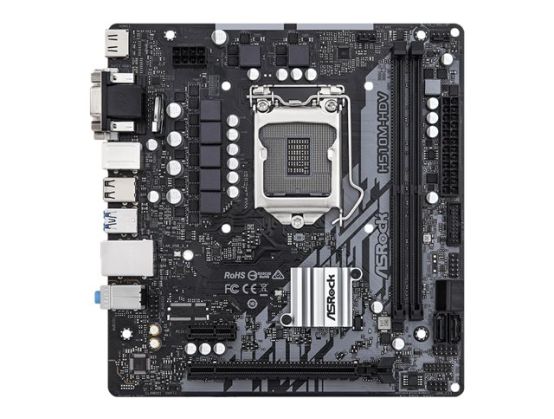

ASRock H510M-HDV R2.0
Motherboard
micro ATX
LGA1200 Socket
H510 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock H510M-HDV R2.0 - motherboard - micro ATX - LGA1200 Socket - H510

Specification

Product Description ASRock H510M-HDV R2.0 - motherboard - micro ATX - LGA1200 Socket - H510

Product Type Motherboard - micro ATX

Chipset Type Intel H510

Processor Socket 1 x LGA1200 Socket

Compatible Processors (supports 10th and 11th Generation Intel Core)

Max RAM Size 64 GB

RAM Supported 2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600

USB / FireWire Ports 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel H510

Processor Socket LGA1200 Socket

Max Processors Qty 1

Compatible Processors (supports 10th and 11th Generation Intel Core)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC887/ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Realtek RTL8111H

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 1 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA

RAID Features Intel Rapid Storage Technology

Interfaces 1 x HDMI ¦ 1 x VGA ¦ 1 x DVI-D ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 mouse

Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x speaker - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

Sleep / Wake Up Wake on LAN (WOL)

Hardware Features ASRock Instant Flash, 5 Phase Power Design, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Premium 50A Power Choke, ASRock VR Ready, Intel Turbo Boost Max Technology 3.0

Miscellaneous

Included Accessories I/O back plate

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN

Compliant Standards FCC, EuP Ready, ErP Ready

Width 19.7 cm

Depth 18.8 cm
