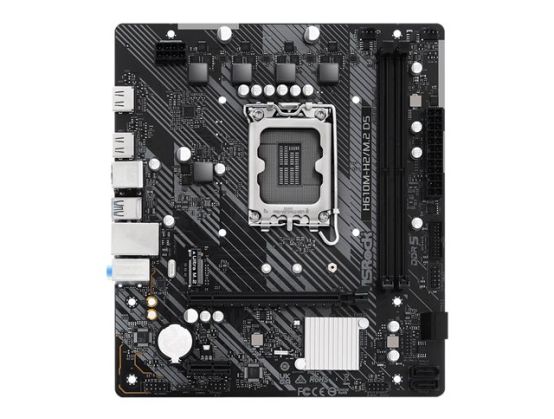

ASRock H610M-H2/M.2 D5 - motherboard - micro ATX - LGA1700 Socket - H610

Name: ASRock H610M-H2/M.2 D5 - motherboard - micro ATX - LGA1700 Socket - H610
Brand: ASROCK
SKU: 1TCPTMOT-005016
Price: 76.79 GBP
Availability: OutOfStock

SKU

1TCPTMOT-005016

Manufacture#: 90-MXBML0-A0UAYZ

£63.99

£76.79 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1700 Socket
H610 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASRock H610M-H2/M.2 D5
Motherboard
micro ATX
LGA1700 Socket
H610 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock H610M-H2/M.2 D5 - motherboard - micro ATX - LGA1700 Socket - H610

Specification

Product Description ASRock H610M-H2/M.2 D5 - motherboard - micro ATX - LGA1700 Socket - H610

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 96 GB

RAM Supported 2 DIMM slots - DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600, 1 x Ultra M.2

USB / FireWire Ports 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 96 GB

Technology DDR5

Bus Clock 4800 MHz, 5600 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Realtek RTL8111H

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2

Interfaces 2 x HDMI ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (Gigabit Ethernet)

Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x SPI - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, Digital PWM, Digi Power Design, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock EZ Mode, Water Pump Header, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology, ASRock Auto Driver Installer, 3+1+1 Power Phase

Miscellaneous

Included Accessories 1 x M.2 screw, full size I/O shield

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities, ASRock A-Tuning, ASRock XFast LAN

Compliant Standards FCC, RoHS, EuP Ready, ErP Ready, UKCA

Width 22 cm

Depth 19.3 cm
