ASROCK

H610M-HDV/M.2 1700 SOCKET 2 DDR4

Name: H610M-HDV/M.2 1700 SOCKET 2 DDR4
Brand: ASROCK
SKU: 1TCPTMOT-003534
Price: 83.23 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003534

Manufacture#: 90-MXBH60-A0UAYZ

£69.36

£83.23 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1700 Socket
H610 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

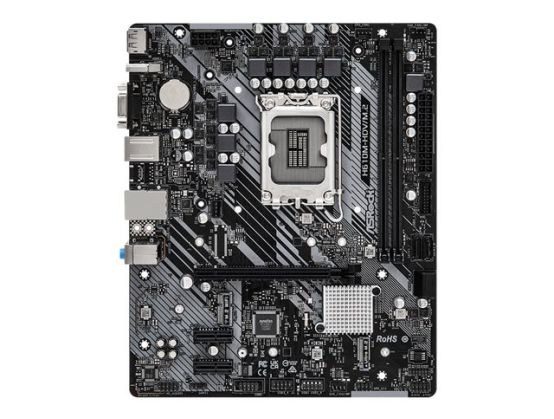

ASRock H610M-HDV/M.2
Motherboard
micro ATX
LGA1700 Socket
H610 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock H610M-HDV/M.2 - motherboard - micro ATX - LGA1700 Socket - H610

Specification

Product Description ASRock H610M-HDV/M.2 - motherboard - micro ATX - LGA1700 Socket - H610

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th Generation Intel Core)

Max RAM Size 64 GB

RAM Supported 2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600, 1 x M.2

USB / FireWire Ports USB 3.2 Gen 1 + (2 x USB 3.1 Gen 1 + 3 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

Manufacturer Warranty 3-year warranty

General

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th Generation Intel Core)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 3200 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC887/ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Intel I219V

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet)

Internal Interfaces 1 x audio - header ¦ 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer

Sleep / Wake Up Wake on LAN (WOL)

Hardware Features ASRock Instant Flash, HDCP compliant, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology

Miscellaneous

Included Accessories I/O back plate, 2 x M.2 screws

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN

Compliant Standards FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3

Width 24.4 cm

Depth 20.1 cm

Manufacturer Warranty

Service & Support Limited warranty - 3 years
