What you've never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you'd like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn't melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Supports HEVC 10-bit decoding to provide substantially improved video quality and higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, and greater range between the brightest and darkest part of the image.
USB / FireWire Ports3 x USB 3.0 + 1 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
GraphicsIntel HD Graphics 500
AudioHD Audio (8-channel)
LANGigabit Ethernet
Extended Specification
General

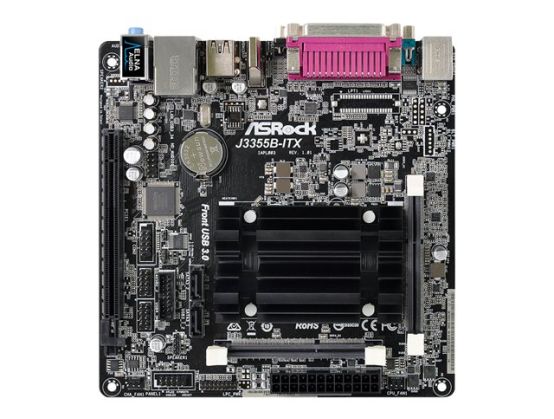

Product TypeMotherboard - mini ITX
ProcessorIntel Celeron J3355 / 2 GHz (Dual-Core)
Cache MemoryL2 - 2 MB
Supported RAM
Max Size16 GB
TechnologyDDR3, DDR3L
Bus Clock1600 MHz, 1333 MHz, 1866 MHz
SpeedPC3-12800, PC3-10666, PC3-14900
Supported RAM Integrity CheckNon-ECC
Registered or BufferedUnbuffered
Graphics
Graphics ControllerIntel HD Graphics 500
Audio
TypeHD Audio (8-channel)
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
LAN
Network ControllerRealtek RTL8111GR
Network InterfacesGigabit Ethernet
Expansion / Connectivity
Expansion Slots2 x SO-DIMM 204-pin ¦ 1 x PCIe 2.0 x1 (x2 mode)
Storage InterfacesSATA-600 -connectors: 2 x 7pin Serial ATA
Interfaces1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 1 x HDMI ¦ 3 x USB 3.0 ¦ 1 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x serial ¦ 1 x parallel
Internal Interfaces2 x USB 3.0 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors24-pin main power connector
Features
BIOS TypeAMI
BIOS FeaturesJumperFree, UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection
Sleep / Wake UpWake on LAN (WOL)
Hardware FeaturesASRock Instant Flash, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock Internet Flash, ASRock Fast Boot, ASRock Restart to UEFI, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock USB Key, Triple Monitor, 4K resolution support, LAN Cable Detection, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Live Update, ASRock Disk Health Report
Miscellaneous
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
Compliant StandardsPlug and Play, WHQL, FCC, EuP Ready, ErP Ready
