ASROCK

B650I LIGHTNING WIFI DIMM 2 DDR4

Name: B650I LIGHTNING WIFI DIMM 2 DDR4
Brand: ASROCK
SKU: 1TCPTMOT-005018
Price: 213.89 GBP
Availability: OutOfStock

SKU

1TCPTMOT-005018

Manufacture#: 90-MXBMP0-A0UAYZ

£178.24

£213.89 inc VAT

Checking delivery…

Product details

Motherboard
mini ITX
Socket AM5
AMD B650 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

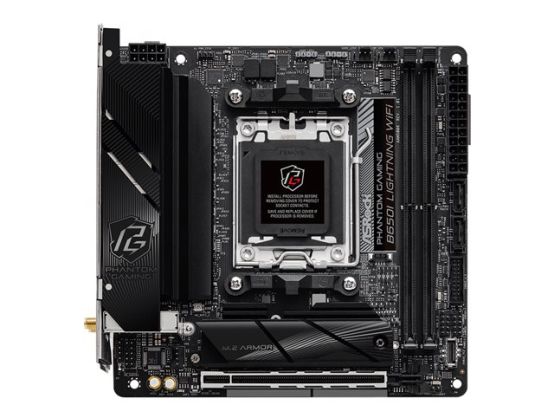

ASRock Phantom Gaming B650I Lightning WiFi
Motherboard
mini ITX
Socket AM5
AMD B650 Chipset
2.5 Gigabit LAN, Bluetooth, Wi-Fi
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock Phantom Gaming B650I Lightning WiFi - motherboard - mini ITX - Socket AM5 - AMD B650

Specification

Product Description ASRock Phantom Gaming B650I Lightning WiFi - motherboard - mini ITX - Socket AM5 - AMD B650

Product Type Motherboard - mini ITX

Chipset Type AMD B650

Processor Socket 1 x Socket AM5

Compatible Processors (supports Ryzen 7000 Series)

Max RAM Size 92 GB

RAM Supported 2 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 2 x SATA-600 (RAID), 2 x M.2

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

General

Product Type Motherboard - mini ITX

Chipset Type AMD B650

Processor Socket Socket AM5

Max Processors Qty 1

Compatible Processors (supports Ryzen 7000 Series)

Supported RAM

Max Size 92 GB

Technology DDR5

Bus Clock 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Dragon RTL8125BG

Network Interfaces 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack

Internal Interfaces 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, pre-mounted I/O shield, 8+2+1 Phase Power Design, reinforced PCIe slots, ASRock Auto Driver Installer, VRM heatsink design, BIOS FlashBack button, ASRock Lightning Gaming Ports, AMD Precision Boost Overdrive (PBO)

Miscellaneous

Included Accessories 1 x M.2 screw, ASRock WiFi 2.4/5/6 GHz aerial

Cables Included 2 x Serial ATA cable

Software Included ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC

Compliant Standards EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3

Width 17 cm

Depth 17 cm
