ASROCK

ASROCK INTEL Z790 NOVA WIFI DIMM 4 DDR5

Name: ASROCK INTEL Z790 NOVA WIFI DIMM 4 DDR5
Brand: ASROCK
SKU: 1TCPTMOT-005014
Price: 361.94 GBP
Availability: OutOfStock

SKU

1TCPTMOT-005014

Manufacture#: 90-MXBMB0-A0UAYZ

£301.62

£361.94 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1700 Socket
Z790 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

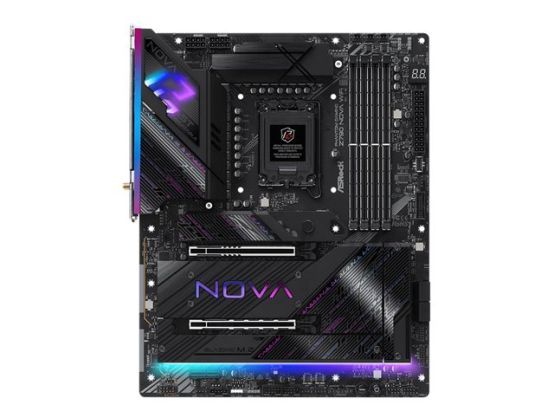

ASRock Phantom Gaming Z790 NOVA WiFi
Motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
2.5 Gigabit LAN, Wi-Fi, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock Phantom Gaming Z790 NOVA WiFi - motherboard - ATX - LGA1700 Socket - Z790

Specification

Product Description ASRock Phantom Gaming Z790 NOVA WiFi - motherboard - ATX - LGA1700 Socket - Z790

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 192 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 6 x M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

General

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 192 GB

Technology DDR5

Bus Clock 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz, 8000 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC4082

Compliant Standards High Definition Audio

LAN

Network Controller Killer E3100G

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 (slot converts to x8 mode when SSD is installed in 1st M.2 slot) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 6 x M.2 socket (2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 3 x USB-C 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out

Internal Interfaces 2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, Lighting Control, ASRock EZ Mode, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASRock Hyper BCLK Engine, DIY Friendly Design, reinforced PCIe slots, Server-Grade Low-Loss PCB, Intel Hybrid Technology, ASRock Auto Driver Installer, VRM heatsink design, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), ASRock Lightning Gaming Ports, 20K black capacitors, 20+1+1 Phase Power Design

Miscellaneous

Included Accessories 3 thermistor cables, 5 x M.2 screws, graphics card holder, 1 to 3 ARGB LED splitter cable, ASRock WiFi 2.4/5/6 GHz aerial, 5 x standoff for M.2 socket

Cables Included 4 x Serial ATA cable

Software Included ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, Killer Control Center

Compliant Standards FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3

Width 30.5 cm

Depth 24.4 cm
