ASROCK

Q270 PRO BTC+ MINING MAINBOARD SOCKET 1151 12X PCIE

Name: Q270 PRO BTC+ MINING MAINBOARD SOCKET 1151 12X PCIE
Brand: ASROCK
SKU: 1TCPTMOT-003540
Price: 208.39 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003540

Manufacture#: 90-MXBHM0-A0UAYZ

£173.66

£208.39 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1151 Socket
Q270 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

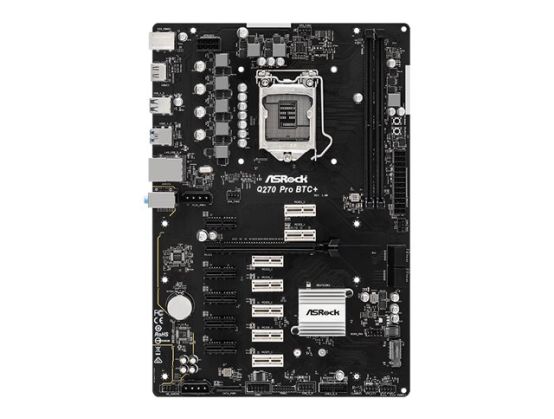

ASRock Q270 Pro BTC+
Motherboard
ATX
LGA1151 Socket
Q270 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock Q270 Pro BTC+ - motherboard - ATX - LGA1151 Socket - Q270

Specification

Product Description ASRock Q270 Pro BTC+ - motherboard - ATX - LGA1151 Socket - Q270

Product Type Motherboard - ATX

Chipset Type Intel Q270

Compatibility Intel vPro

Processor Socket 1 x LGA1151 Socket

Compatible Processors (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron / Xeon, Maximum TDP 91 Watt)

Max RAM Size 32 GB

RAM Supported 2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - ATX

Chipset Type Intel Q270

Compatibility Intel vPro

Processor Socket LGA1151 Socket

Max Processors Qty 1

Compatible Processors (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron / Xeon, Maximum TDP 91 Watt)

Supported RAM

Max Size 32 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Intel I219V

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 12 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Interfaces 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x HDMI

Internal Interfaces 1 x serial - header ¦ 1 x speaker - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector, 2 x 4-pin auxiliary power connectors

Features

BIOS Type AMI

BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer

Sleep / Wake Up Wake on LAN (WOL)

Hardware Features 15µ Gold Contact, 6 Phase Power Design, Intel Turbo Boost Technology 2.0, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, Sapphire Black PCB, ASRock Live Update, Premium 45A Power Choke, Intel Active Management Technology (Intel AMT) 11.6

Miscellaneous

Included Accessories I/O back plate, 1 x M.2 screw

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar

Compliant Standards FCC, EuP Ready, ErP Ready, HDCP 1.4

Width 30.5 cm

Depth 20.8 cm
