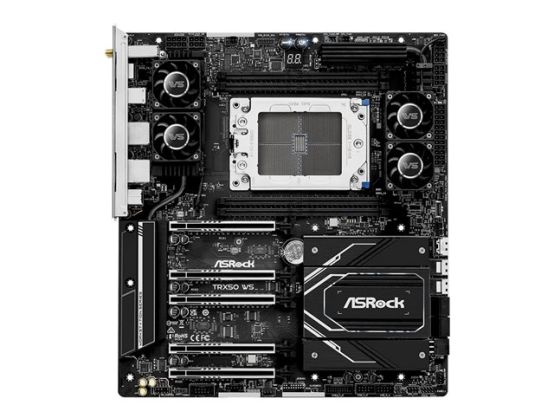

ASRock TRX50 WS - motherboard - extended ATX - Socket sTR5 - AMD TRX50

Name: ASRock TRX50 WS - motherboard - extended ATX - Socket sTR5 - AMD TRX50
Brand: ASROCK
SKU: 1TCPTMOT-005022
Price: 723.92 GBP
Availability: OutOfStock

SKU

1TCPTMOT-005022

Manufacture#: 90-MXBN40-A0UAYZ

£603.27

£723.92 inc VAT

Checking delivery…

Product details

Motherboard
extended ATX
Socket sTR5
AMD TRX50 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASRock TRX50 WS
Motherboard
extended ATX
Socket sTR5
AMD TRX50 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASRock TRX50 WS - motherboard - extended ATX - Socket sTR5 - AMD TRX50

Specification

Product Description ASRock TRX50 WS - motherboard - extended ATX - Socket sTR5 - AMD TRX50

Product Type Motherboard - extended ATX

Chipset Type AMD TRX50

Processor Socket 1 x Socket sTR5

Compatible Processors Ryzen (supports Ryzen Threadripper PRO 7000 Series / 7000 Series)

Max RAM Size 1 TB

RAM Supported 4 DIMM slots - DDR5, ECC, registered, buffered, 3DS-RDIMM

Storage Ports 4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Blazing M.2, 2 x SlimSAS

USB / FireWire Ports 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

General

Product Type Motherboard - extended ATX

Chipset Type AMD TRX50

Processor Socket Socket sTR5

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen Threadripper PRO 7000 Series / 7000 Series)

Supported RAM

Max Size 1 TB

Technology DDR5

Bus Clock 7600 MHz (O.C.)

Supported RAM Integrity Check ECC

Registered or Buffered Registered, buffered, 3DS-RDIMM

Features Quad channel memory architecture

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1220

Compliant Standards High Definition Audio

LAN

Network Controller Dragon RTL8125BG / Marvell AQC113

Network Interfaces 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x8 mode) ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x SlimSAS

Interfaces 2 x aerial ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x SPDIF out ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, ASRock A-Tuning, ASRock Full HD UEFI, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, 12 Layer PCB, reinforced PCIe slots, Surface Mount Technology (SMT), ASRock Auto Driver Installer, Smart Power Stage (SPS) technology, BIOS FlashBack button, Enlarged Heatsink Armor, 110A Power Stage, Server-Grade Ultra-Low-Loss PCB, 20K black capacitors, ASRock Polychrome RGB, chipset heatsink, aluminium heatsink design, 18+3+3 Phase Power Design

Miscellaneous

Included Accessories 2 x M.2 screws, 2 thermistor cables, 2 x standoff for M.2 socket, ASRock WiFi 2.4/5/6 GHz aerial

Cables Included 4 x Serial ATA cable ¦ 1 x Multi PSU adapter cable

Software Included ASRock A-Tuning, ASRock Dragon 2.5G LAN Software

Compliant Standards FCC, EuP Ready, ErP Ready

Width 30.5 cm

Depth 27.7 cm
