ASROCK

X570 PG VELOCITA X570 AM4 ATX GLN+U3.2+M2 SATA 6GB/S DDR4

Name: X570 PG VELOCITA X570 AM4 ATX GLN+U3.2+M2 SATA 6GB/S DDR4
Brand: ASROCK
SKU: 1TCPTMOT-003752
Price: 249.88 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003752

Manufacture#: 90-MXBER0-A0UAYZ

£208.23

£249.88 inc VAT

Checking delivery…

Product details

Motherboard
ATX
Socket AM4
AMD X570 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

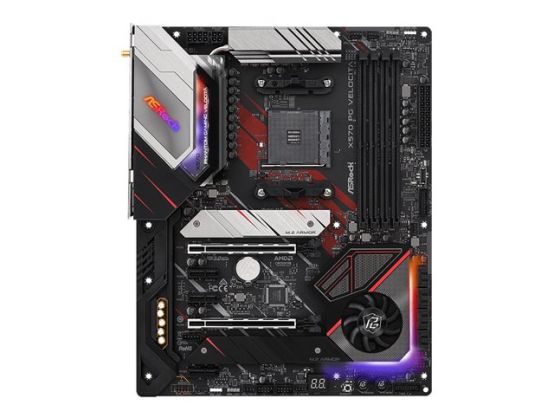

ASRock X570 PG Velocita
Motherboard
ATX
Socket AM4
AMD X570 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
2.5 Gigabit LAN, Wi-Fi, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. "Velocità" is Italian for "Velocity", destined to give a fast and unbeatable gaming experience to the gamers!

Specification

Product Description ASRock X570 PG Velocita - motherboard - ATX - Socket AM4 - AMD X570

Product Type Motherboard - ATX

Chipset Type AMD X570

Processor Socket 1 x Socket AM4

Compatible Processors Ryzen

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered

Storage Ports 8 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.1

General

Product Type Motherboard - ATX

Chipset Type AMD X570

Processor Socket Socket AM4

Max Processors Qty 1

Compatible Processors Ryzen

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4866 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 4466 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1200

Compliant Standards High Definition Audio, Premium Blu-ray audio support

LAN

Network Controller Killer E3100G / AX1650x

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.1

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x16, x4 mode; single card: x16 mode) ¦ 3 x PCIe 4.0 x1 ¦ 1 x M.2 socket (Key E)

Storage Interfaces SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2

Interfaces 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 6 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK

Internal Interfaces 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header

Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

Sleep / Wake Up Wake on LAN (WOL)

Hardware Features ASRock Instant Flash, 15µ Gold Contact, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Killer DoubleShot Pro, I/O Armor, ASRock Live Update, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, Hi-Density Power Connectors, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 14 Phase Power Design, 2oz Copper PCB, VR Ready, ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2

Miscellaneous

Included Accessories ASRock WiFi 2.4/5GHz Antenna, 2 x M.2 screws, 2 x standoff for M.2 socket

Cables Included 4 x Serial ATA cable

Software Included Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Polychrome SYNC, ASRock Killer LAN

Compliant Standards Plug and Play, FCC, EuP Ready, ErP Ready

Width 30.5 cm

Depth 24.4 cm
