ASROCK

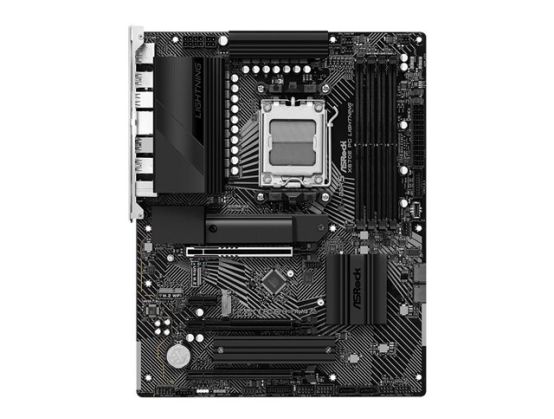

X670E PG LIGHTNING AMD AM5 X670E ATX 4 DDR5

Name: X670E PG LIGHTNING AMD AM5 X670E ATX 4 DDR5
Brand: ASROCK
SKU: 1TCPTMOT-004406
Price: 268.73 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004406

Manufacture#: 90-MXBJ60-A0UAYZ

£223.94

£268.73 inc VAT

Checking delivery…

Product details

Motherboard
ATX
Socket AM5
AMD X670E Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASRock X670E PG Lightning
Motherboard
ATX
Socket AM5
AMD X670E Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
2.5 Gigabit LAN
onboard graphics (CPU required)
High Definition Audio (7.1-channel)

Overview

ASRock X670E PG Lightning - motherboard - ATX - Socket AM5 - AMD X670E

Specification

Product Description ASRock X670E PG Lightning - motherboard - ATX - Socket AM5 - AMD X670E

Product Type Motherboard - ATX

Chipset Type AMD X670E

Processor Socket 1 x Socket AM5

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Blazing M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio High Definition Audio (7.1-channel)

LAN 2.5 Gigabit Ethernet

General

Product Type Motherboard - ATX

Chipset Type AMD X670E

Processor Socket Socket AM5

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 6600 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology

Audio

Type High Definition Audio (7.1-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Dragon RTL8125BG

Network Interfaces 2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 3 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x PCIe 4.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 2.0 ¦ 6 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPI - header

Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, Hi-Density Power Connectors, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), reinforced PCIe slots, Server-Grade Low-Loss PCB, Surface Mount Technology (SMT), ASRock Auto Driver Installer, BIOS FlashBack button, 14+2+1 Phase Power Design, 70A Smart Power Stage

Miscellaneous

Included Accessories 4 x M.2 screws, standoff for M.2 socket

Cables Included 2 x Serial ATA cable

Software Included ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software

Compliant Standards EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, FCC Part 15 Subpart B

Width 30.5 cm

Depth 24.4 cm
