USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Bluetooth, Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6
onboard graphics (CPU required)
High Definition Audio (7.1-channel)
Overview

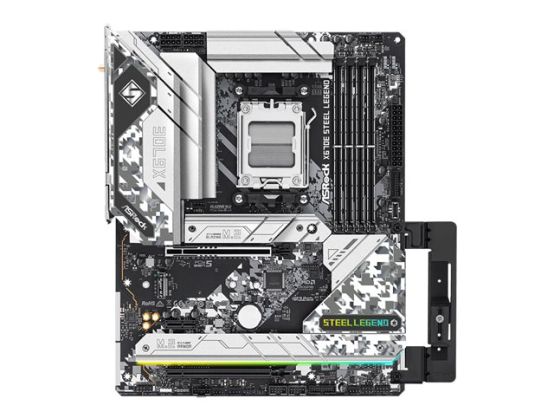

The ASRock X670E Steel Legend motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Storage Ports4 x SATA-600 (RAID), 3 x Hyper M.2, 1 x Blazing M.2
USB / FireWire Ports1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2 + 4 x USB 2.0 via headers)
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x SPDIF out
Internal Interfaces1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x speaker - header ¦ 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS
Hardware Features15µ Gold Contact, 8 Layer PCB, ASRock Full HD UEFI, Nichicon 12K Black Caps, ASRock Steel Slots, Hi-Density Power Connectors, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), DIY Friendly Design, 16+2+1 Phase Power Design, Server-Grade Low-Loss PCB, Surface Mount Technology (SMT), ASRock Auto Driver Installer, Smart Power Stage (SPS) technology, Reinforced DIMM slot
Miscellaneous
Included Accessories4 x M.2 screws, standoff for M.2 socket, graphics card holder, ASRock WiFi 2.4/5/6 GHz aerial
Cables Included2 x Serial ATA cable
Software IncludedASRock A-Tuning, ASRock Dragon 2.5G LAN Software
Compliant StandardsEuP Ready, ErP Ready, RoHS 2011/65/EU, DisplayPort 1.4, HDCP 2.3, RED 2014/53/EU, UKCA, FCC Part 15 Subpart B
