ASROCK

X670E TAICHI CARRARA AMD AM5 X670E ATX 4 DDR5

Name: X670E TAICHI CARRARA AMD AM5 X670E ATX 4 DDR5
Brand: ASROCK
SKU: 1TCPTMOT-004404
Price: 575.83 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004404

Manufacture#: 90-MXBJ10-A0UAYZ

Be the first to review this product

£479.86

£575.83 inc VAT

Order by 15:00 and receive your order on Friday 18 Apr

Product details

Motherboard
extended ATX
Socket AM5
AMD X670E Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

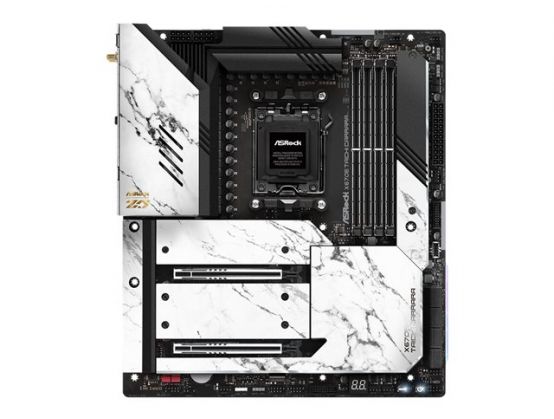

ASRock X670E Taichi Carrara
Motherboard
extended ATX
Socket AM5
AMD X670E Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
Bluetooth, 2.5 Gigabit LAN, Wi-Fi 6
onboard graphics (CPU required)
HD Audio (5.1-channel)

Overview

ASRock X670E Taichi Carrara motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Specification

Product Description ASRock X670E Taichi Carrara - motherboard - extended ATX - Socket AM5 - AMD X670E

Product Type Motherboard - extended ATX

Chipset Type AMD X670E

Processor Socket 1 x Socket AM5

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 8 x SATA-600, 3 x Hyper M.2, 1 x Blazing M.2

USB / FireWire Ports 2 x USB4 + 5 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (5.1-channel)

LAN Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

General

Product Type Motherboard - extended ATX

Chipset Type AMD X670E

Processor Socket Socket AM5

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 6600 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology

Audio

Type HD Audio (5.1-channel)

Audio Codec Realtek ALC4082

Compliant Standards High Definition Audio

LAN

Network Controller Killer E3100G / AX1675

Network Interfaces Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 3 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2230/2242/2260/2280/22110 M.2 Key M slot)

Storage Interfaces ASMedia ASM1061: SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

Interfaces 2 x USB4 ¦ 5 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 2 x aerial ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces 1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x speaker - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, 15µ Gold Contact, ASRock Dr. Debug, 8 Layer PCB, Clear CMOS Button, ASRock Full HD UEFI, Killer DoubleShot Pro, Nichicon 12K Black Caps, Hi-Density Power Connectors, ASRock Ultra USB Power, Water Pump Header, pre-mounted I/O shield, ESS 9218 SABRE HiFi DAC, ASRock Hyper BCLK Engine, DIY Friendly Design, reinforced PCIe slots, WIMA audio capacitors, Server-Grade Low-Loss PCB, Surface Mount Technology (SMT), 105A Smart Power Stage, ASRock Auto Driver Installer, BIOS FlashBack button, Enlarged Heatsink Armor, Reinforced DIMM slot, 24+2+1 Phase Power Design, VRM heatsink with fan, M.2 Fan-Heatsink

Miscellaneous

Included Accessories 4 x M.2 screws, standoff for M.2 socket, wireless dongle USB bracket, ASRock WiFi 2.4/5/6 GHz aerial, 12CM Carrara Edition Cooling FAN, Blazing M.2 Gen5 Fan Heatsink

Cables Included 4 x Serial ATA cable

Software Included ASRock A-Tuning, Killer Control Center

Compliant Standards EuP Ready, ErP Ready, RoHS 2011/65/EU, HDCP 2.3, UKCA, FCC Part 15 Subpart B

Width 30.5 cm

Depth 26.7 cm
