AMD Ryzen 5 5600H: 6C 12T 3.30 4.20GHz (35W) 8GB DDR4 3200MHz (1x8GB) 256GB PCIe G4 M.2 SSD Integrated - Radeon Graphics No
Manufacture#: PN52-S5140AD
Checking delivery…
Product details
Mini PC
Ryzen 5 5600H / 3.3 GHz
RAM 8 GB
SSD 256 GB
Payment options available at checkout
Main features

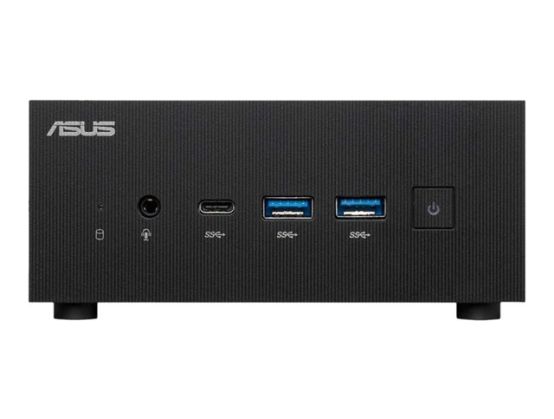

ASUS ExpertCenter PN52 S5140AD
Mini PC
Ryzen 5 5600H / 3.3 GHz
RAM 8 GB
SSD 256 GB
NVMe
Radeon Graphics
GigE, 2.5 GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E)
WLAN: Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Win 11 Pro
monitor: none
eco black
Overview
ASUS ExpertCenter PN52 S5140AD - mini PC - Ryzen 5 5600H 3.3 GHz - 8 GB - SSD 256 GB
Product Description
ASUS ExpertCenter PN52 S5140AD - mini PC - Ryzen 5 5600H 3.3 GHz - 8 GB - SSD 256 GB
Type
Personal computer - mini PC
Processor
AMD Ryzen 5 5600H / 3.3 GHz (, up to 4.2 GHz, (6-core)
Cache Memory
16 MB L3 Cache
Cache Per Processor
16 MB
RAM
8 GB DDR4 SDRAM
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
SSD 256 GB - PCI Express 3.0 - M.2 - NVM Express (NVMe)
Optical Storage
No optical drive
Graphics Controller
AMD Radeon Graphics
Networking
GigE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5 GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E)
OS Provided
Windows 11 Pro
Colour
Eco black
Dimensions (WxDxH)
12 cm x 13 cm x 5.8 cm
Weight
1 kg
Manufacturer Warranty
Limited warranty - 1 year
General
Type
Personal computer
Product Form Factor
Mini PC
Colour
Eco black
Processor / Chipset
CPU
AMD Ryzen 5 5600H
Clock Speed
3.3 GHz
Max Turbo Speed
4.2 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
1
Cache Memory
Installed Size
L3 Cache - 16 MB
Cache Per Processor
16 MB
RAM
Installed Size
8 GB
Technology
DDR4 SDRAM
Form Factor
SO-DIMM 260-pin
Hard Drive
Type
SSD - M.2
Capacity
1 x 256 GB
Interface Type
PCI Express 3.0
Features
NVM Express (NVMe)
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
AMD Radeon Graphics
Video Interfaces
HDMI, DisplayPort
Audio Output
Compliant Standards
High Definition Audio
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Features
Dual stream (2x2)
Expansion / Connectivity
Slots
2 (total) / 1 (free) x M.2 Card (for internal storage)
Interfaces
LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 (1 rear) ¦ 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 1 x headphones/microphone ¦ 1 x DisplayPort/USB-C 3.2 Gen 2 ¦ 2 x HDMI ¦ 1 x DisplayPort 1.4
Miscellaneous
Compliant Standards
UL, VCCI, C-Tick, BSMI, CB, CCC, FCC
Power
Device Type
Power adapter
Power Provided
120 Watt
Operating System / Software
OS Provided
Windows 11 Pro
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Dimensions & Weight
Width
12 cm
Depth
13 cm
Height
5.8 cm
Weight
1 kg
