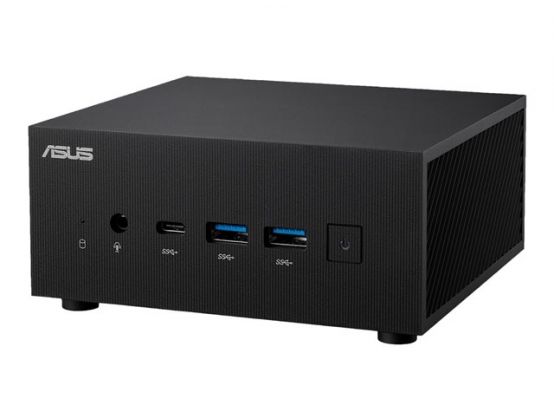

ASUS Mini PC PN52 B-S9057MD - Barebone - mini PC 1 x Ryzen 9 5900HX / up to 4.6 GHz - RAM 0 GB - Radeon Graphics - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) - eco black
Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) WLAN:
Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
eco black
Overview
ASUS ExpertCenter PN52 Mini PC, a mini PCs that offer amazing combinations of performance and aesthetics, including unique ribbed chassis with beveled edges for a look that blends easily into any office or commercial setting. ExpertCenter PN52 are standout performer in the 1-liter PC segment, with a compact layout and thermal design to ensure stability for the AMD processor. It can support up to four displays and features comprehensive I/O connectivity.¦The ExpertCenter PN52 Mini PC is powered by the AMD Ryzen 9 processor with integrated AMD Radeon graphics. It features PCIe 3.0, M.2 SSD slots and one SATA connector. PN52 also features dual HDMI ports and seven USB ports, including a USB 3.2 Gen 2 Type-C port that supports DisplayPort 1.4.
Product DescriptionASUS Mini PC PN52 B-S9057MD - mini PC - Ryzen 9 5900HX 3.3 GHz - 0 GB - no HDD
TypePC barebone - mini PC
Processor1 x AMD Ryzen 9 5900HX / 3.3 GHz (, up to 4.6 GHz, (8-core)
Cache Memory16 MB L3 Cache
Cache Per Processor16 MB
RAM0 GB DDR4 SDRAM
Storage ControllerSATA (SATA 6Gb/s)
Hard DriveNo HDD
Optical StorageNo optical drive
Graphics ControllerAMD Radeon Graphics
Networking1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.2, 802.11ax (Wi-Fi 6E)
OS ProvidedNo operating system
ColourEco black
Dimensions (WxDxH)12 cm x 13 cm x 5.8 cm
Weight1 kg
Extended Specification
General
TypePC barebone
Product Form FactorMini PC
ColourEco black
Processor / Chipset
CPUAMD Ryzen 9 5900HX
Clock Speed3.3 GHz
Max Turbo Speed4.6 GHz
Number of Cores8-core
CPU Qty1
Max CPU Qty1
Cache Memory
Installed SizeL3 Cache - 16 MB
Cache Per Processor16 MB
RAM
Installed Size0 GB
TechnologyDDR4 SDRAM
Form FactorSO-DIMM 260-pin
Slots2 (Total) / 2 (empty)
Hard Drive
TypeNo HDD
Storage Controller
Type1 x SATA
Controller Interface TypeSATA 6Gb/s
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeNone.
Graphics Controller
Graphics ProcessorAMD Radeon Graphics
Video InterfacesHDMI, DisplayPort, USB-C
Networking
Ethernet Ports2.5 Gigabit Ethernet
Wireless LAN SupportedYes
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
FeaturesDual stream (2x2)
Expansion / Connectivity
Interfaces1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x headphones/microphone ¦ 1 x DisplayPort/USB-C 3.2 Gen 2 (Power Delivery) ¦ 2 x HDMI
