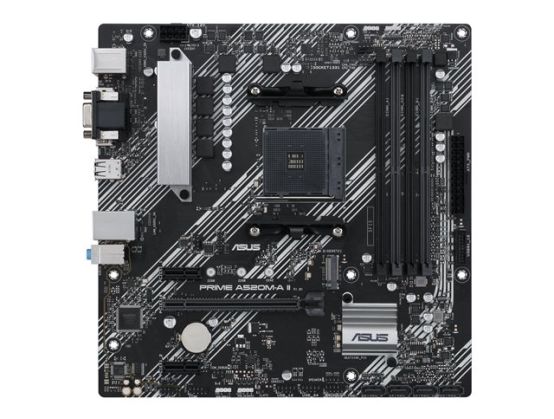

ASUS PRIME A520M-A II - Motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x SPI - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
Sleep / Wake UpWake on LAN (WOL)
Hardware FeaturesLANGuard, jack retasking, audio jack detect technology, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert 2+, ASUS EZ DIY, CrashFree BIOS 3, ASUS 5X Protection III, ASUS Overvoltage Protection, ASUS Stainless Steel Back I/O, ASUS SafeSlot Core, Lighting Control, ASUS Q-Design, Q-DIMM, Q-Slot, Preboot eXecution Environment (PXE)
Miscellaneous
Included AccessoriesI/O back cover, 1 x M.2 screw
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AI Suite III, ASUS CPU-Z, ASUS EZ Update, ASUS AI Charger, DAEMON Tools, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3
