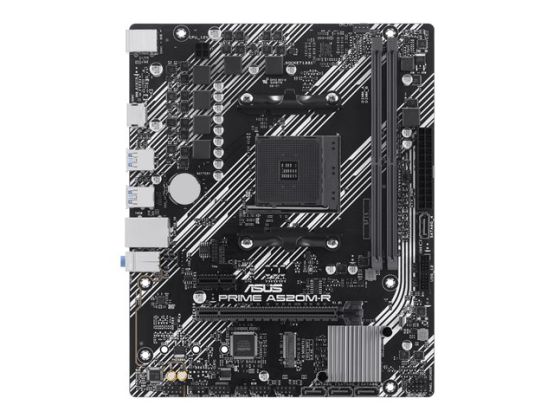

ASUS PRIME A520M-R - motherboard - micro ATX - Socket AM4 - AMD A520

Name: ASUS PRIME A520M-R - motherboard - micro ATX - Socket AM4 - AMD A520
Brand: ASUS
SKU: 1TCPTMOT-004967
Price: 64.02 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004967

Manufacture#: PRIME A520M-R

£53.35

£64.02 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
Socket AM4
AMD A520 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS PRIME A520M-R
Motherboard
micro ATX
Socket AM4
AMD A520 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASUS PRIME A520M-R - motherboard - micro ATX - Socket AM4 - AMD A520

Specification

Product Description ASUS PRIME A520M-R - motherboard - micro ATX - Socket AM4 - AMD A520

Product Type Motherboard - micro ATX

Chipset Type AMD A520

Processor Socket 1 x Socket AM4

Compatible Processors Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)

Max RAM Size 64 GB

RAM Supported 2 DIMM slots - DDR4, ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type AMD A520

Processor Socket Socket AM4

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 4466 MHz (O.C.), 5100 MHz (O.C.)

Supported RAM Integrity Check ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header

Power Connectors 4-pin ATX12V connector, 24-pin main power connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features ASUS Q-Design, Q-DIMM, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, Lighting Control, overvoltage protection, ASUS 5X Protection III, ASUS SafeSlot Core, DIY Friendly Design

Miscellaneous

Included Accessories 1 x M.2 anchor, IO shield

Cables Included 2 x Serial ATA cable

Software Included ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, Norton AntiVirus (60 days trial), Armoury Crate, ASUS Fan Xpert, WinRAR (40 days trial)

Width 23.6 cm

Depth 19.3 cm
