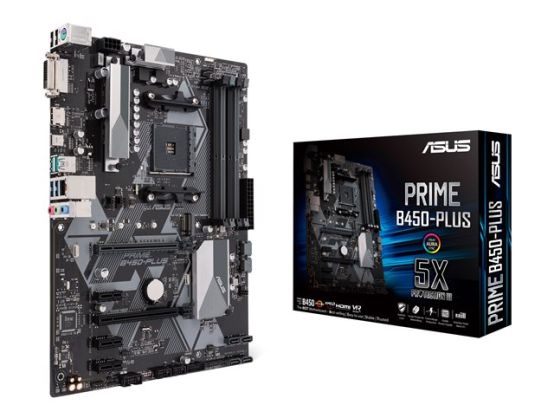

ASUS PRIME B450-PLUS - Motherboard - ATX - Socket AM4 - AMD B450 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS Prime B450 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. All the good stuff that's packed into AMD Ryzen processors was melded with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450 Series motherboard, you build smart, easy and affordably.
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode)
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen1
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesMultilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesC.P.R. (CPU Parameter Recall), ASUS Q-Design, ESD Guards, Q-DIMM, Q-Slot, CrashFree BIOS 3, 6 Phase Power Design, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Fan Xpert 4 Core, AMD StoreMI technology, NVM Express RAID support, ASUS Aura Sync
Miscellaneous
Included Accessories1 x M.2 screw, I/O back cover
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Flash 3, File Transfer
