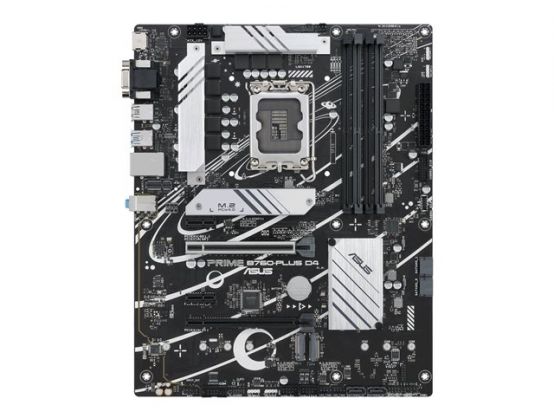

ASUS PRIME B760-PLUS D4 - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations.
USB / FireWire Ports1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2
RAID FeaturesIntel Rapid Storage Technology
Interfaces1 x DisplayPort ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack
Internal Interfaces1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesIntel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem, audio jack detect technology, jack retasking, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, LANGuard, M.2 heatsink, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, CrashFree BIOS 3, Preboot eXecution Environment (PXE), DIY Friendly Design
Miscellaneous
Included AccessoriesIO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package
Cables Included2 x Serial ATA cable
Software IncludedArmoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR
