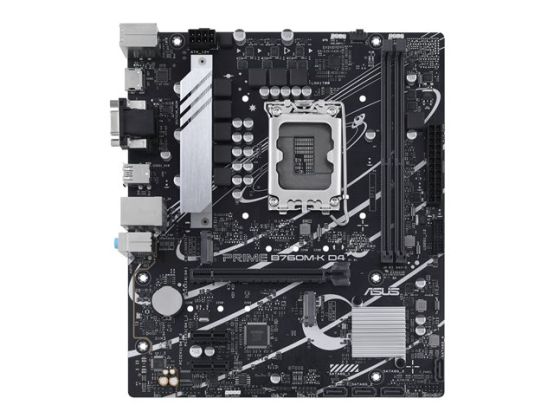

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
- Intel LGA 1700 socket - ready for 13th and 12th Gen Intel processors
- Ultrafast connectivity - PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5 Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive cooling - VRM heatsink, PCH heatsink, hybrid fan headers
- Aura Sync RGB Lighting - onboard addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
All-around energy efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
VRM heatsink and thermal pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
ProCool connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
DDR4 support
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
Two M.2 slots (up to 64 Gbps)
The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0 slot
The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel CPUs and offer PCIe 4.0 connectivity for the GPUs.
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
